Premium woods · Broad styles · Custom options
Our drawer boxes are available in a wide range of materials and construction options, machined to your exact spec sheet for repeat and volume orders. Your account rep can walk you through construction and material options, solid wood, plywood, stocked availability, product codes and lead times.
Drawer boxes ship alongside CNC-machined cabinet components, stocked slides and hinges and full custom cabinet runs on one purchase order.
Spec It Yourself
Size Your Drawer Boxes In 3D.
Dial in width, depth and height, choose solid wood or plywood and pick your slides, then send the finished spec sheet and product codes straight to our Las Vegas shop.
Construction Methods
We offer a wide range of construction materials and assembly options. No matter which you choose, every drawer box is designed to last and manufactured to the highest build standards.

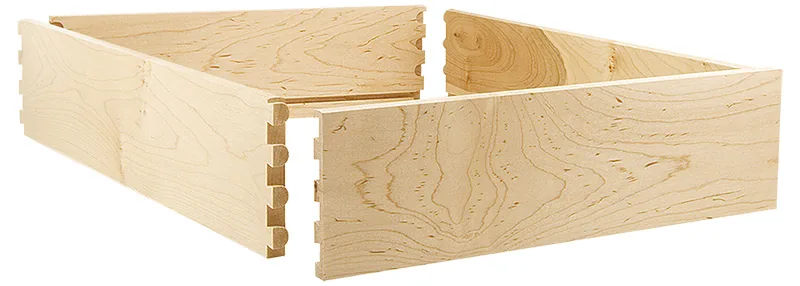

A series of pins cut to extend from the end of one board interlock with tails cut into the end of another. Once glued, a wooden dovetail joint requires no mechanical fasteners, the strongest box we build.

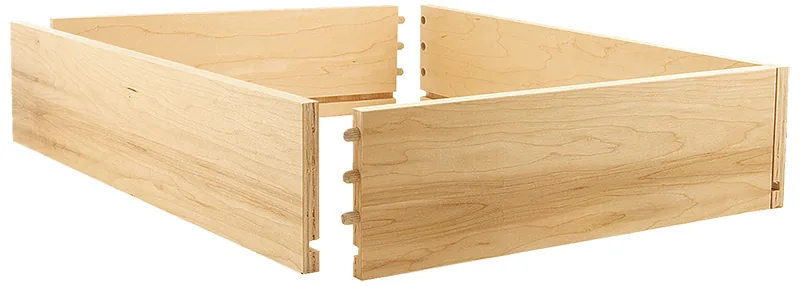

Doweled construction offers good quality at a very affordable price. Doweled drawer boxes can also be flat-packed for easy shipping and on-site assembly.
Drawer Box Side Options
Choose the profile that suits the cabinet, square standard sides, tapered angled sides, or a decorative scalloped cut-out.
Full-height square sides, the most common profile, and the best canvas for a laser-engraved logo.
Sides taper down toward the front for easier access and a lighter look inside the cabinet.

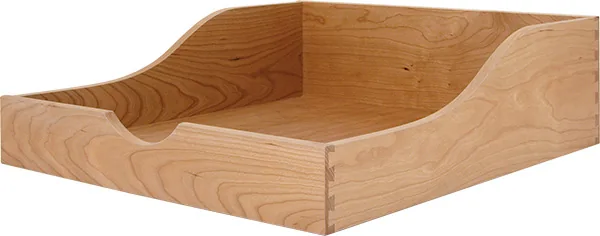

A curved cut-out along the side gives a decorative profile and an easy reach into the box.
Available Materials
Offering different material options lets you design cabinets and drawer boxes that fit the style you need, on a budget you can afford.
Finishing after assembly available
Available in dowel construction only
Notch, Drill & Clip
We can construct drawer boxes notched, drilled and clipped for undermount drawer slides. We carry adjustable and standard clips from Hettich, Blum, Salice and Grass, matching slides, including soft close, are also available.
Boxes arrive pre-notched at the back and pre-drilled for clips, so the slide simply snaps in, no measuring or drilling on site.

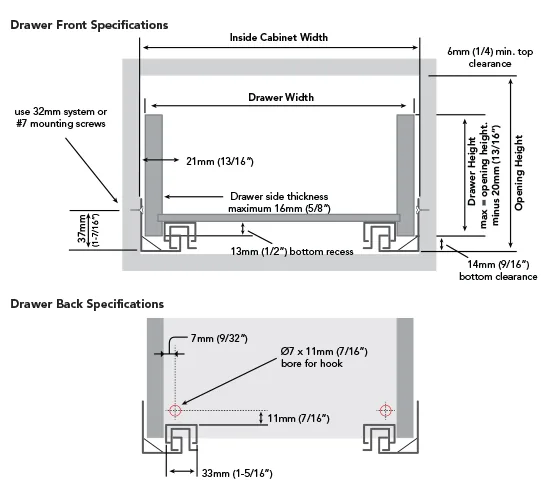

Click the drawing to enlarge. Dimensions shown are for standard undermount notch and drill patterns. Specify your slide brand and we’ll machine to match.
Sizing & Tolerances
First determine the drawer opening size and drawer side thickness. Use the thickness to look up the subtraction factor in the chart, then subtract it from the opening size.
Select the drawer side thickness you plan to order.
| Side Thickness | Subtraction Factor |
|---|---|
| 5/8" (16mm) | 3/8" (10mm) |
| 19/32" (15mm) | 15/32" (12mm) |
| 9/16" (14mm) | 9/16" (14mm) |
| 1/2" (13mm) | 5/8" (16mm) |
| 15/32" (12mm) | 23/32" (18mm) |
Worked example
An 18′ drawer opening with a 5/8′ side thickness has a subtraction factor of 3/8′, so the outside drawer width is 18′ − 3/8′ = 17-5/8′.
Width tolerance
1/32" (+/-)
Depth tolerance
1/16" (+/-)
Height tolerance
1/16" (+/-)
Side thickness
Outside drawer width
17-5/8"
18′ opening − 3/8′ subtraction factor
All boxes are built to the manufacturing tolerances listed at left.
Drawer Scoop Options
Scoops act as pullouts for drawer boxes, allowing easy access without hardware. Most manufacturers offer two styles; we offer three. Scoops are centered on the front of the drawer box.
Closest legacy match: #5
Closest legacy match: #6
Closest legacy match: #3
Custom Engraved Laser Logos
Give the lasting impression of a completely custom drawer box by leaving a signature of your craftsmanship with your company's logo. For the best results we recommend laser engraving on alder, cherry, maple, red birch and walnut.
Logo Requirements
Please submit a black & white version of your logo in PDF format to your customer service rep. There is a one-time setup fee per logo used.
Lipped Drawer Boxes
Lipped drawer boxes combine the box and the face into one unit. Choose dovetail or doweled construction with a solid or plywood face lip.

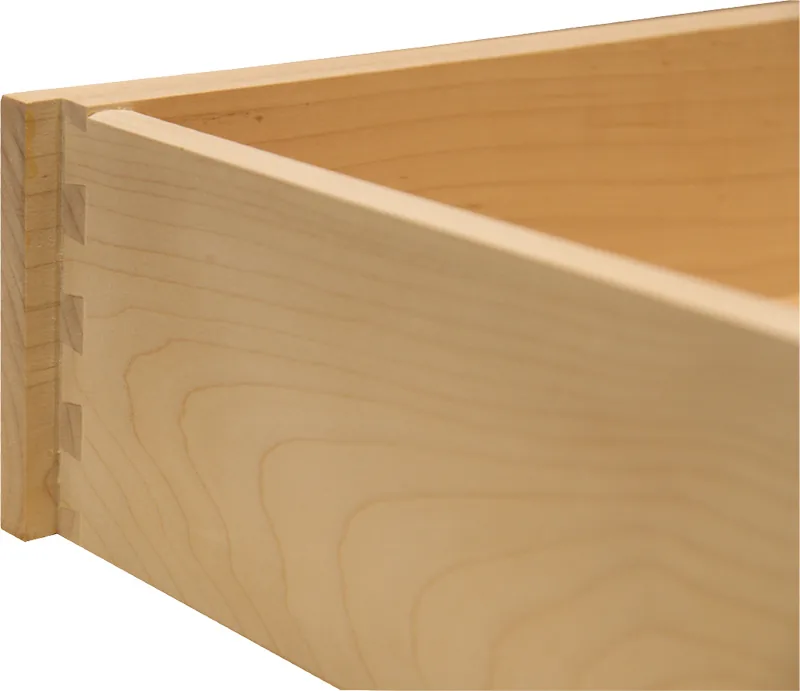

Style #1
Dovetail3/4" thick face board with 3/8" lip. Add 1/4" to depth measurement for undermount slides.

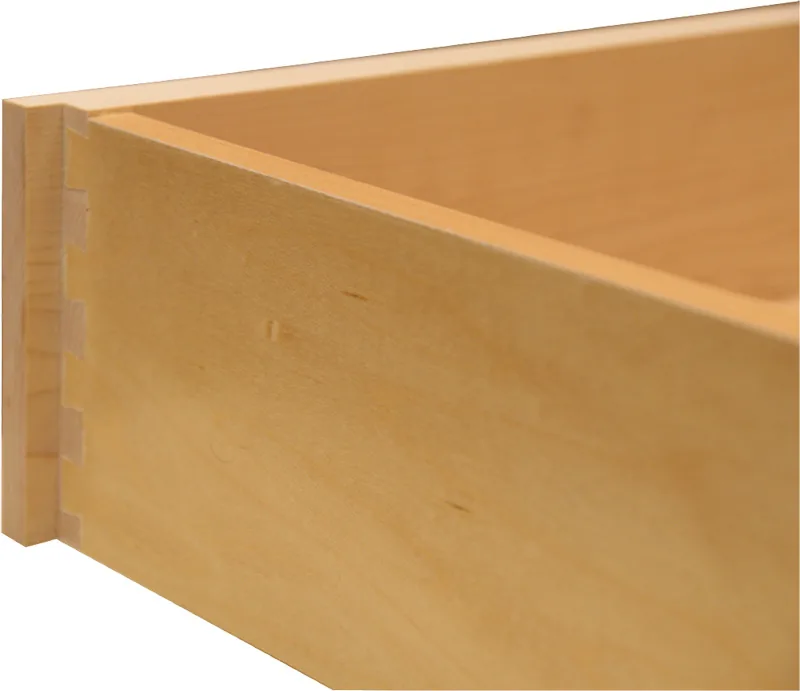

Style #2
Dovetail3/4" thick face board with 3/8" lip. Add 1/4" to depth measurement for undermount slides.

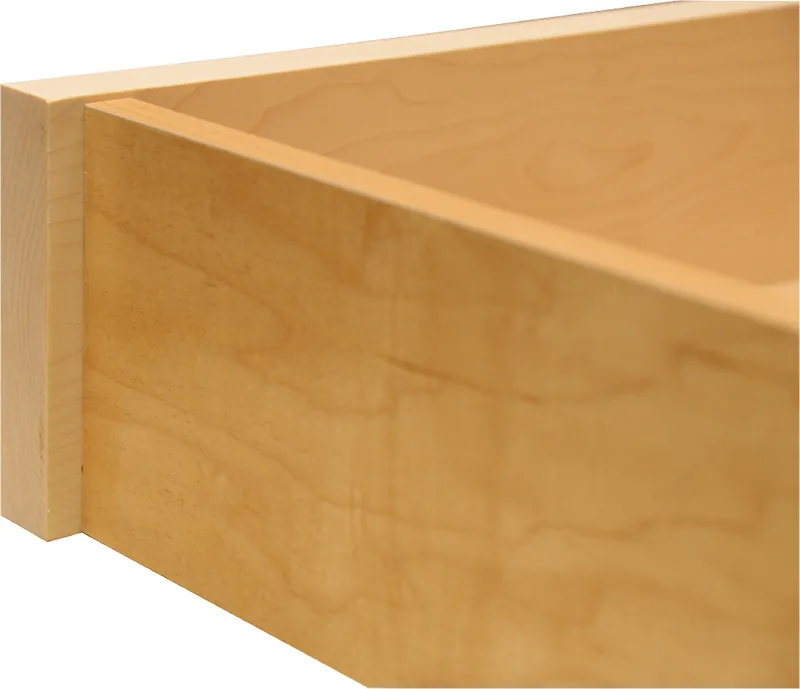

Style #3
Doweled3/4" thick face board with 3/8" lip. Add 1/4" to depth measurement for undermount slides.

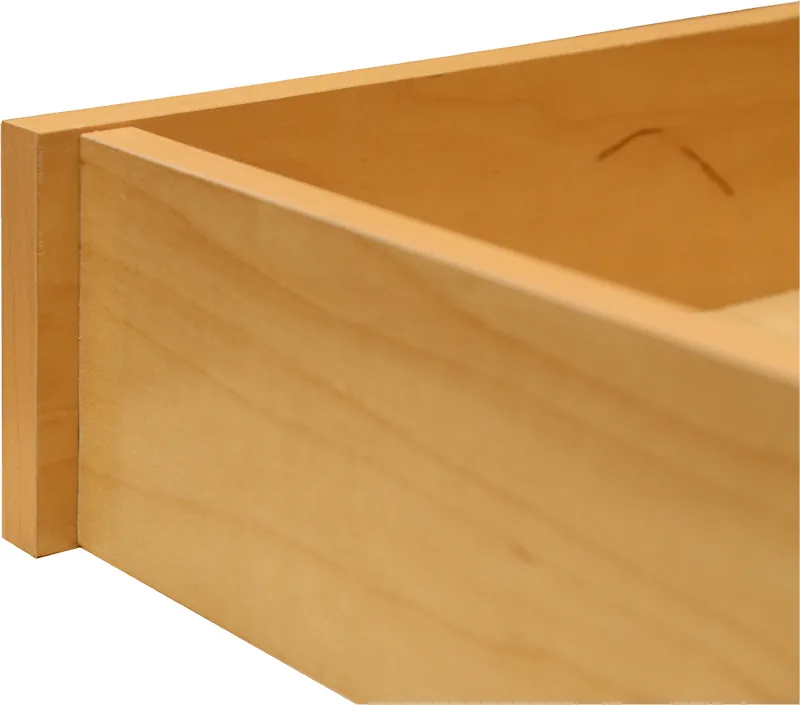

Style #4
Doweled1/2" thick face board with 3/8" lip.
Storage Boxes & Insert Options
From simple spice and silverware inserts to innovative corner boxes and wine storage, we offer a wide range of drawer box and cabinet inserts to help you make the most of your storage space.

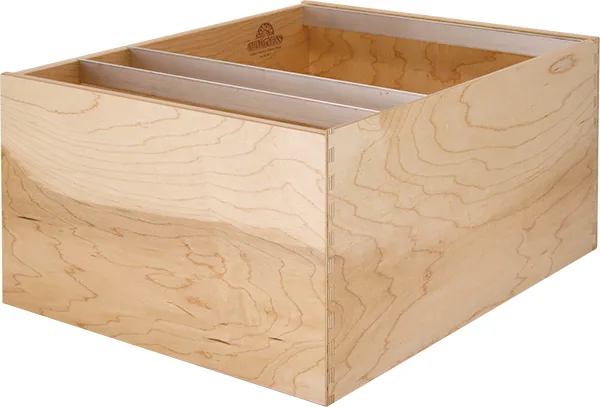

File Boxes
Keep paperwork and important files tucked away in an Ultimate Cabinets file drawer box. File boxes are available with folder rails mounted to hang file folders parallel to the length or the width of the box.
Features
Sizes & Specifications
Drawer Interiors In Use

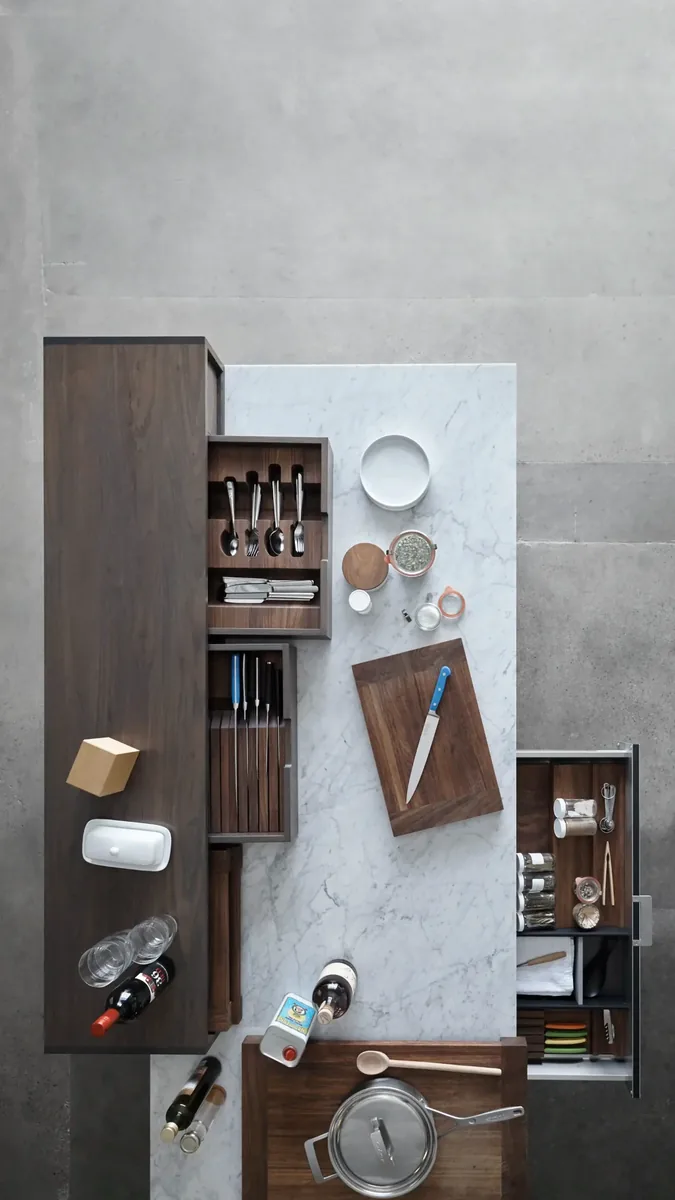

Overhead and elevation views of our drawer boxes installed with cutlery, knife and utensil inserts, machined to the cabinet opening, not trimmed to fit.
Send us your sizes, construction and material choices, or download the spec sheet and we’ll quote it. Every box is machined in our Las Vegas shop, on time and on budget for repeat orders.
