General Information
Component Info & Guidelines
How we build and machine every component we ship: AWI-standard construction, hardware hole layouts and the spec sheet details you'll want to confirm before your order goes to the CNC.
Cabinet Construction
01- Part thickness
- All parts are 3/4″ thick except the back. The customer specifies the materials used throughout.
- Assembly method
- Dowel screws (confirmat) are used primarily for assembly.
- Finished ends
- Finished ends can be dowel constructed, or a 3/4″ applied finished end can be fabricated from the cabinet's exterior material. Applied door panels are also available. Ultimate Cabinets, Inc. will provide inserted hardwood dowels in all horizontal cabinet components for doweled cabinet assembly.
- Backs
- Backs are 1/4″ thick and dadoed on the sides and bottom of the cabinet. Stop dadoes are used on wall-hung cabinet sides.
- Drawer stretchers
- Drawer stretchers are placed relative to the size and location of the drawer front.
- Nailers
- Nailers are placed behind the back and are cut from fall-off material, color may vary.
- Custom requests
- Construction methods may vary for a customer's specific requests, and option fees will apply.
CNC Machining, Hardware Hole Layout Methods
02- Machined accuracy
- All hardware holes are accurately machined. Holes are placed specifically for each hinge plate, drawer slide and adjustable shelf.
- Hinge baseplates
- Holes required for hinge baseplates are placed relative to the top and bottom of the door. Hinge cups can be bored 3″ from the top and bottom edge of the door.
- Drawer hardware
- Drawer hardware holes are placed for the specified hardware and relative to the location of the drawer.
- Adjustable shelves
- Adjustable shelf holes are placed between the base plates only if adjustable shelves are specified in the cabinet.
- Specify your hardware
- Specify exactly which hardware applications are to be used when placing your order. Only hardware called out on the order form will fit the final machined part.
Cabinetry Detail Illustrated
03
Ultimate Cabinets, Inc. can construct the cabinet to meet all Woodwork Institute construction standards. It is the responsibility of the customer to specify correct materials, meet specific grade requirements, and to certify Woodwork Institute compliance.
Component Catalog
Find Your Box by Series or Code
Choose a component type from the dropdown or search by CM number. Click any drawing to view it full size.
63 components
100 Series

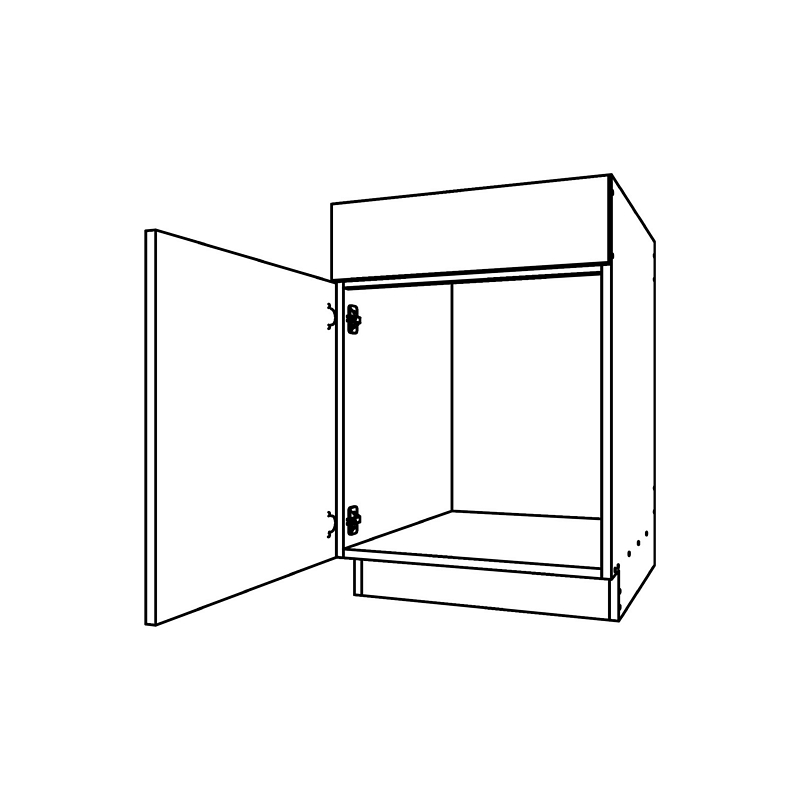

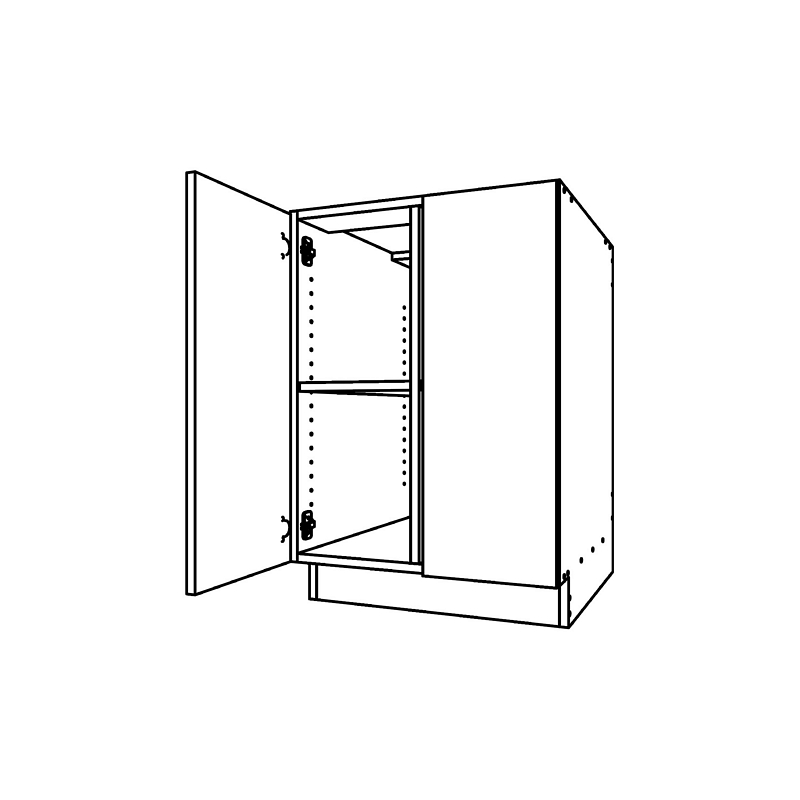

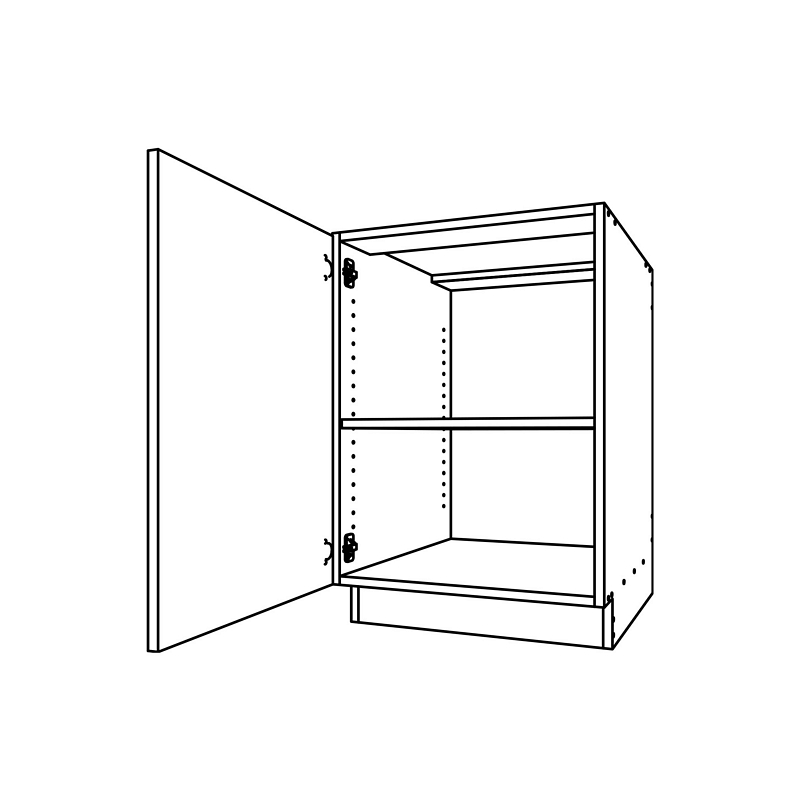

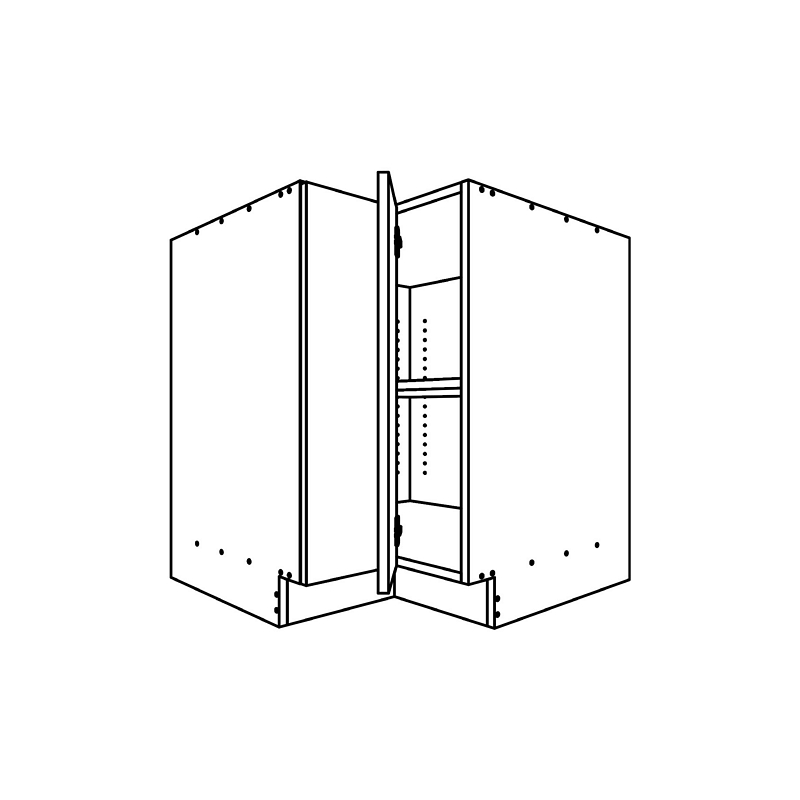

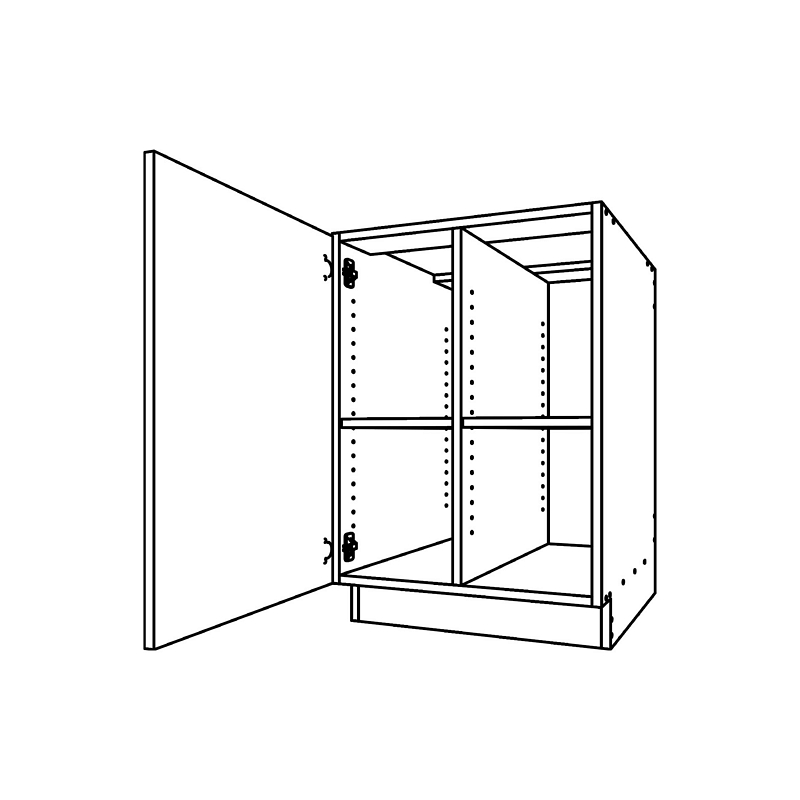

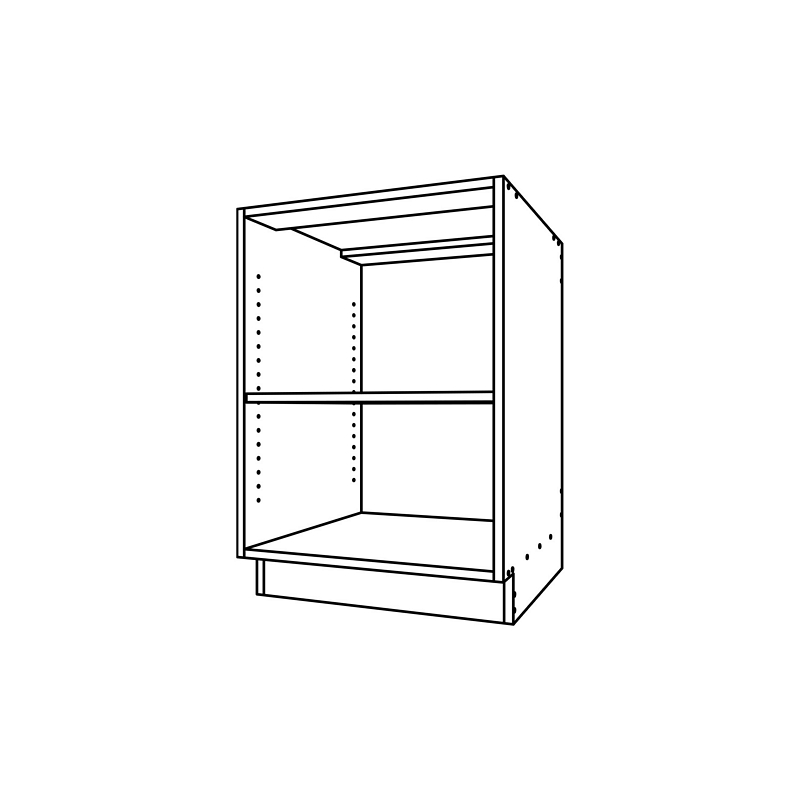

Base Cabinets

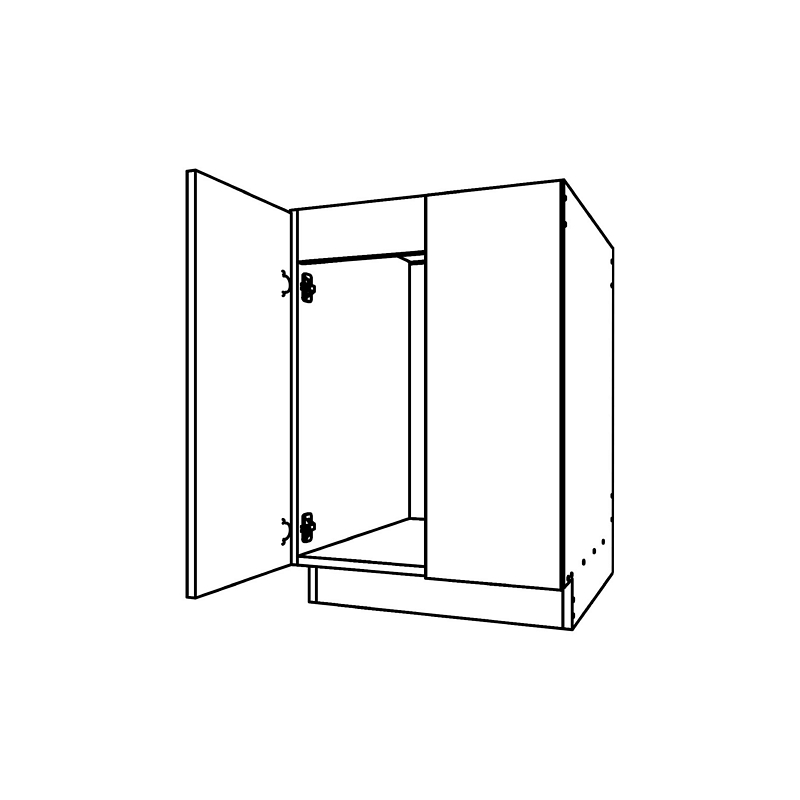

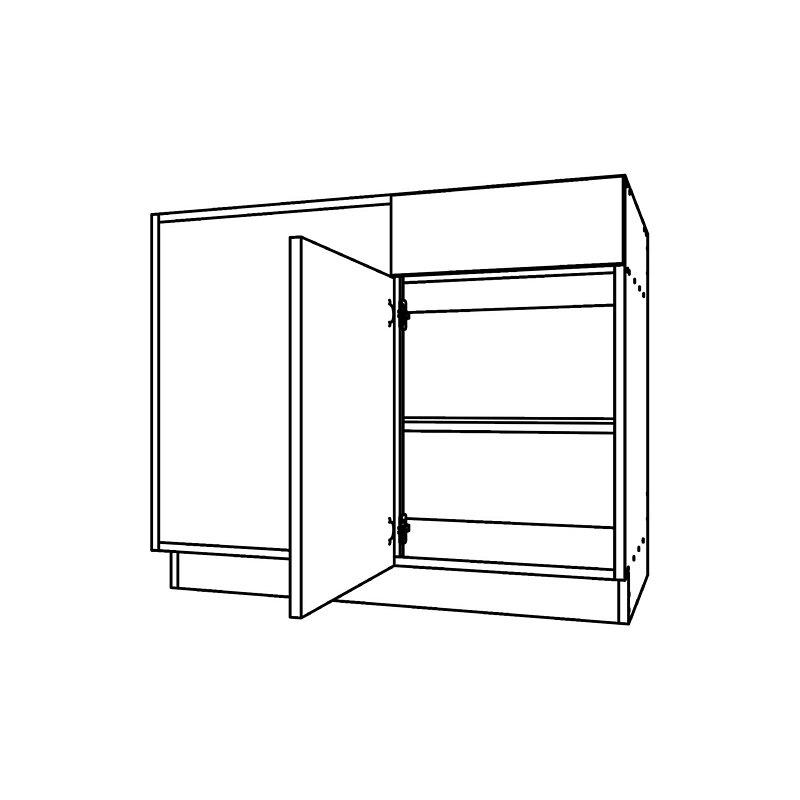

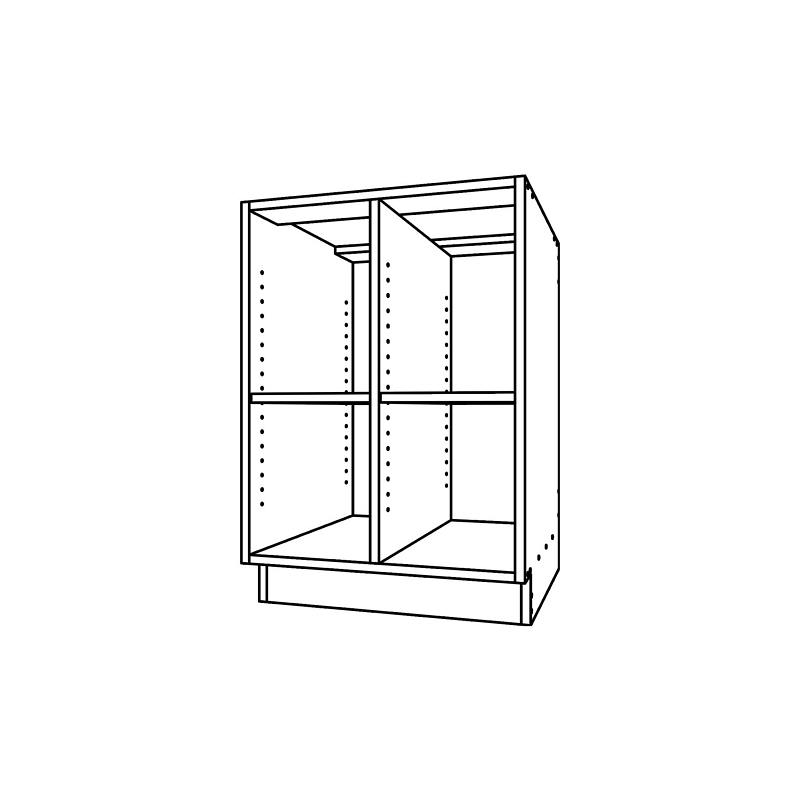

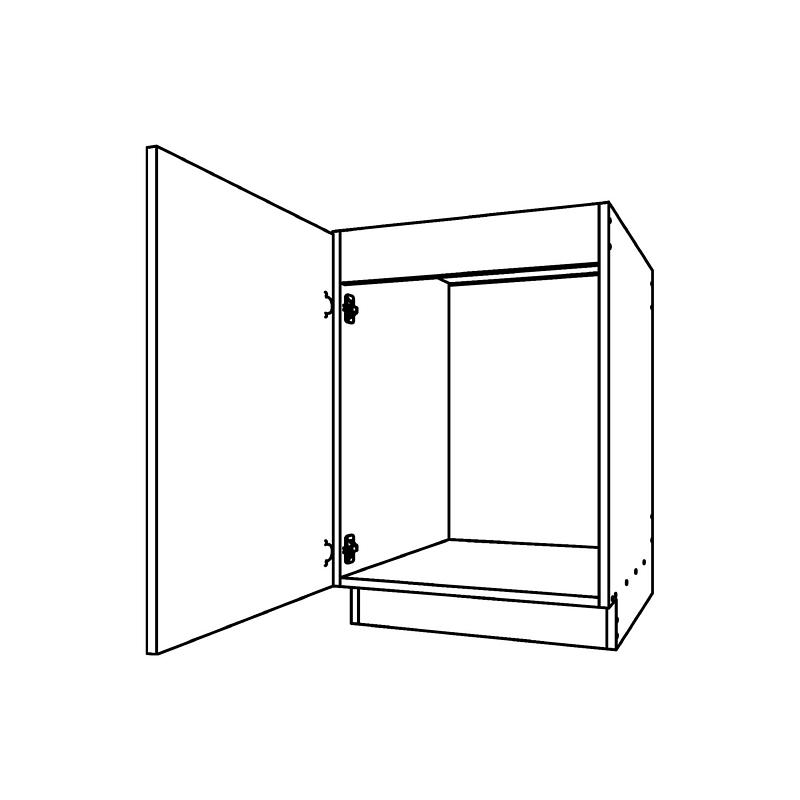

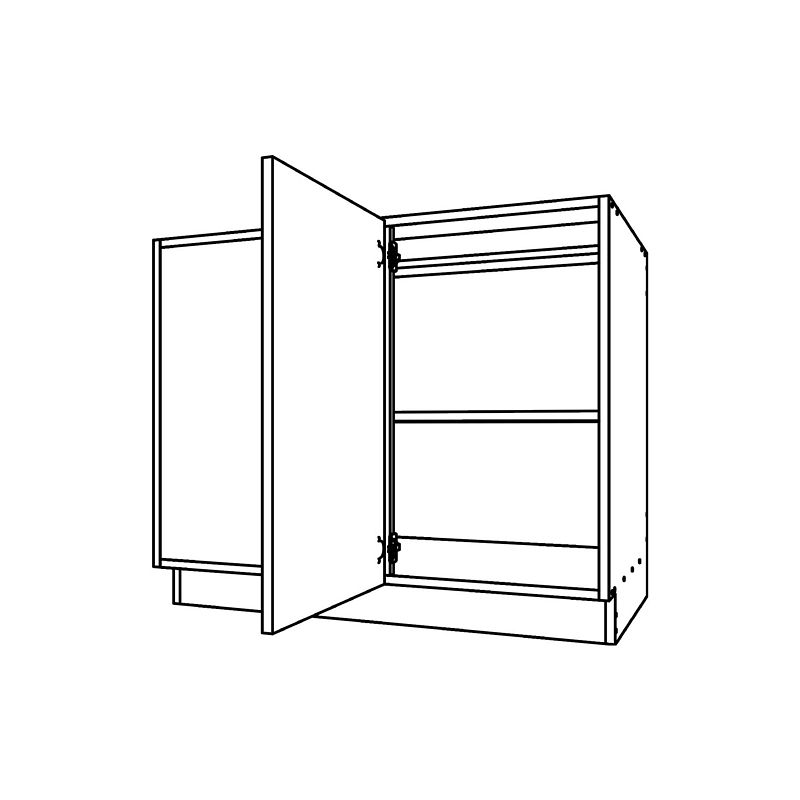

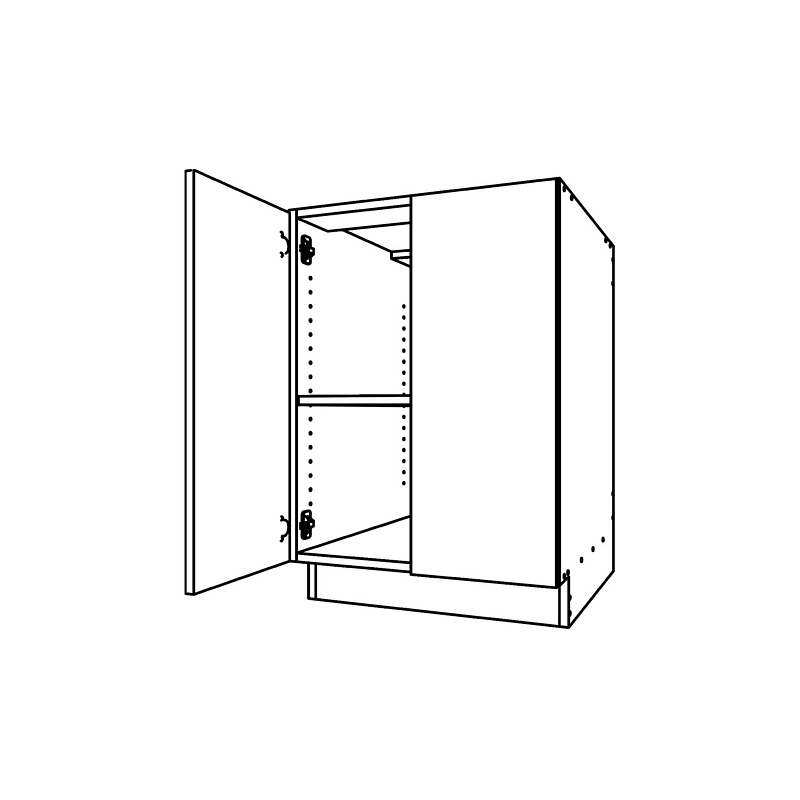

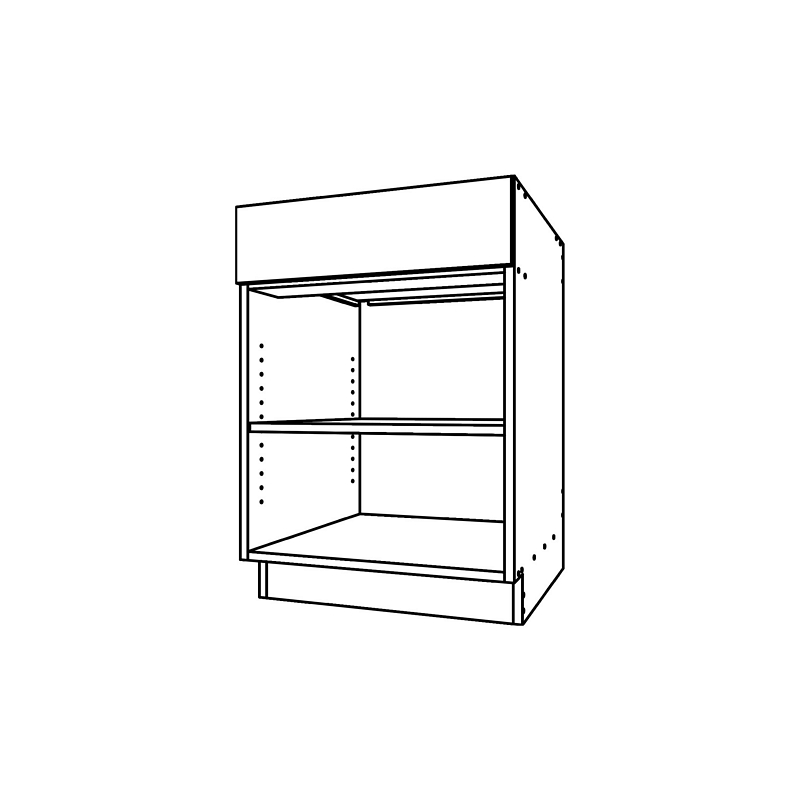

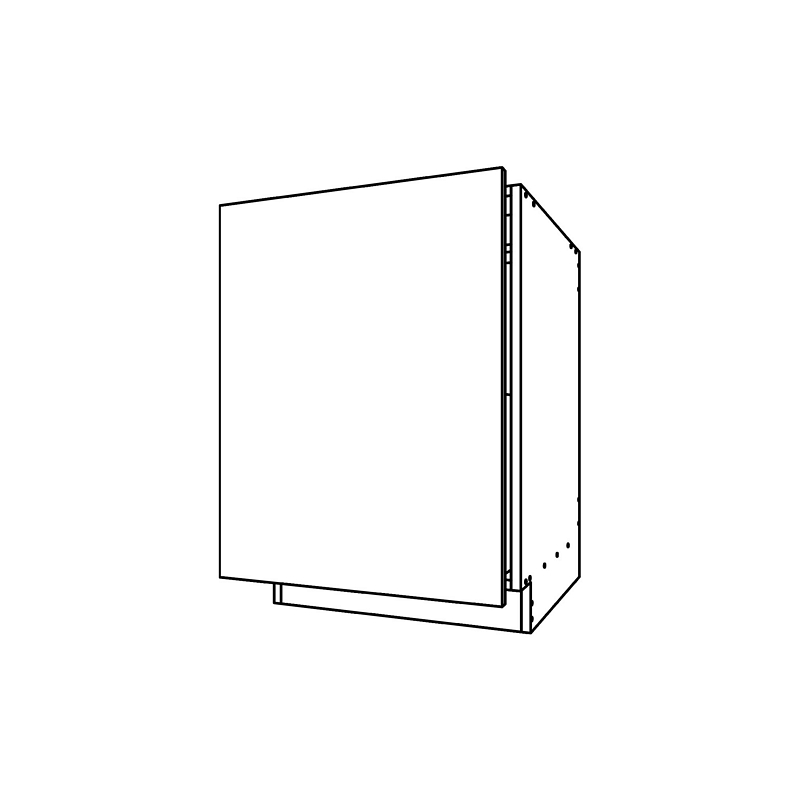

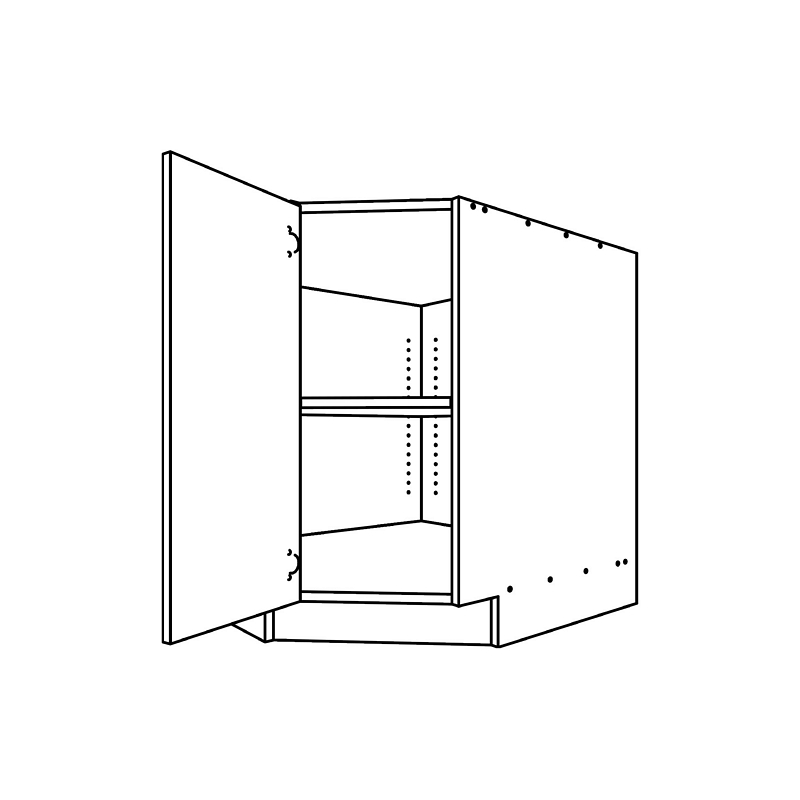

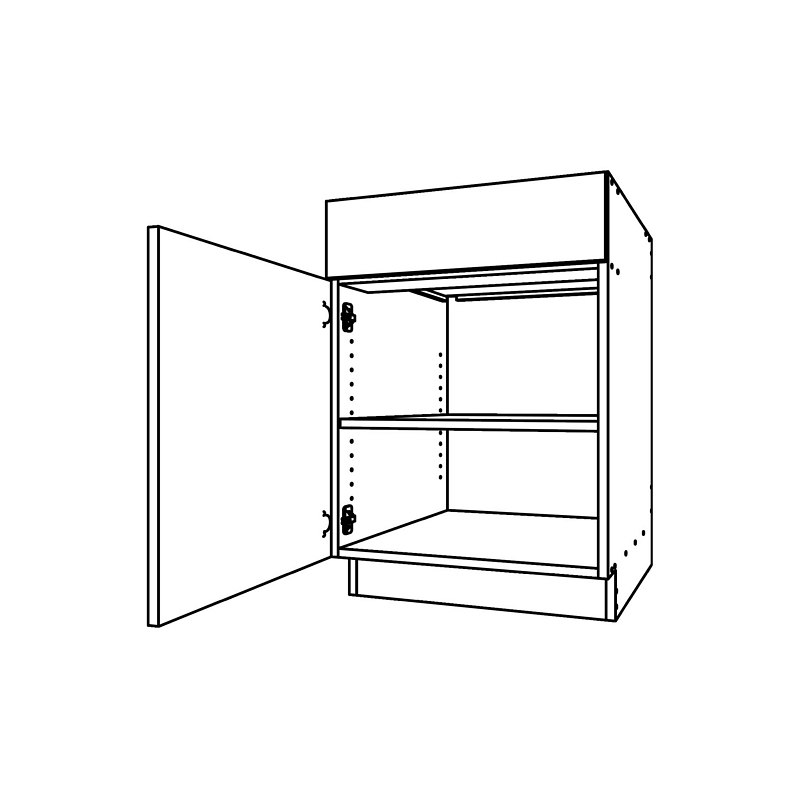

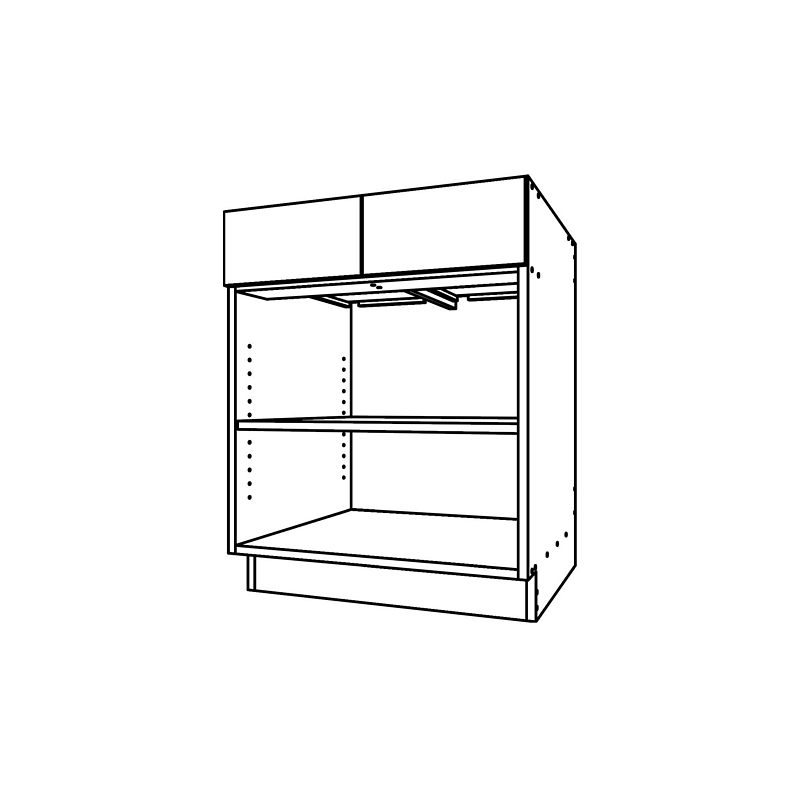

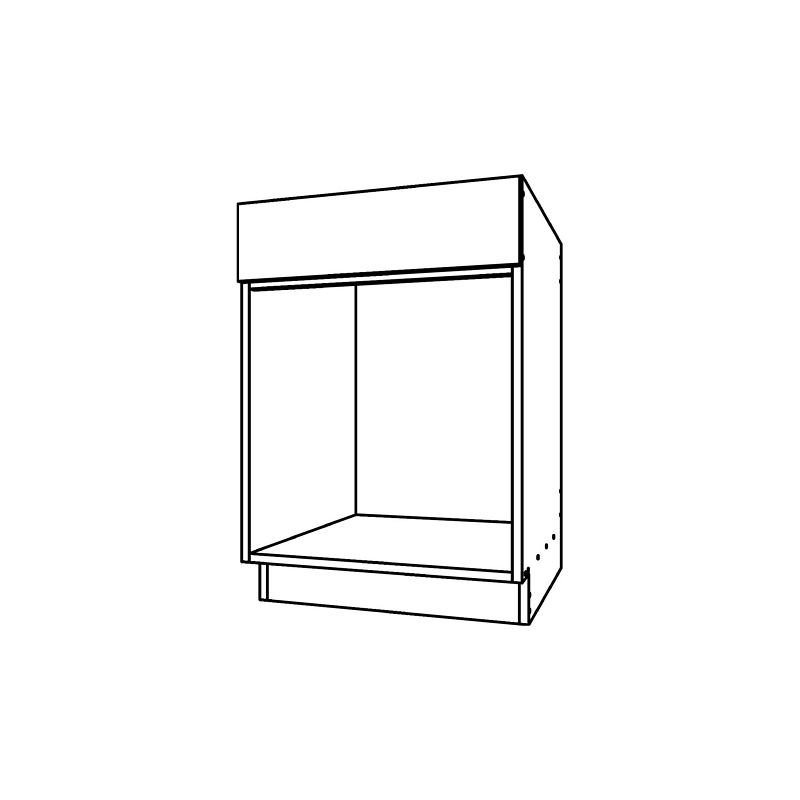

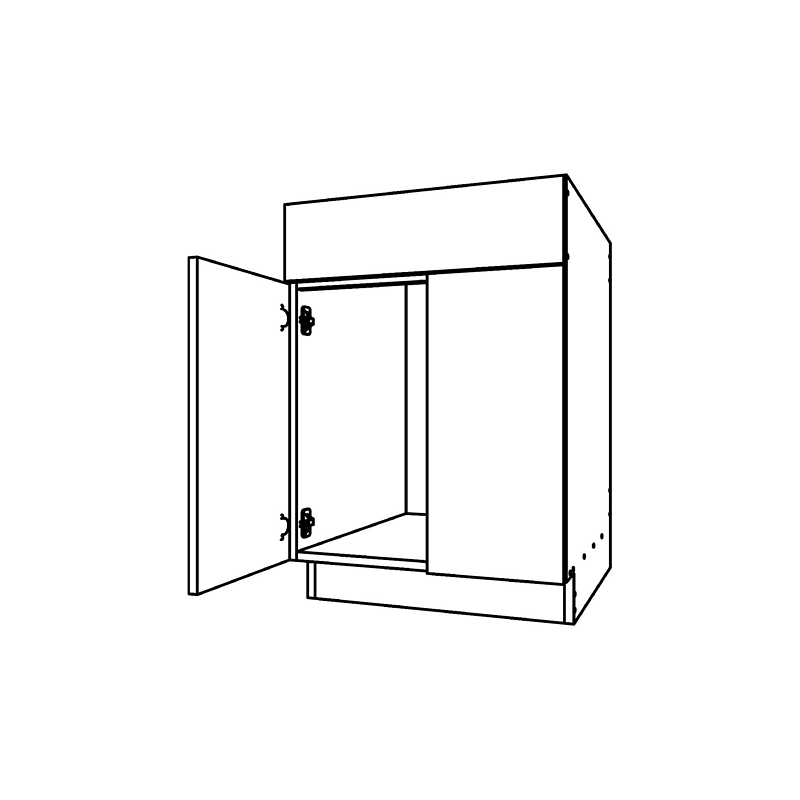

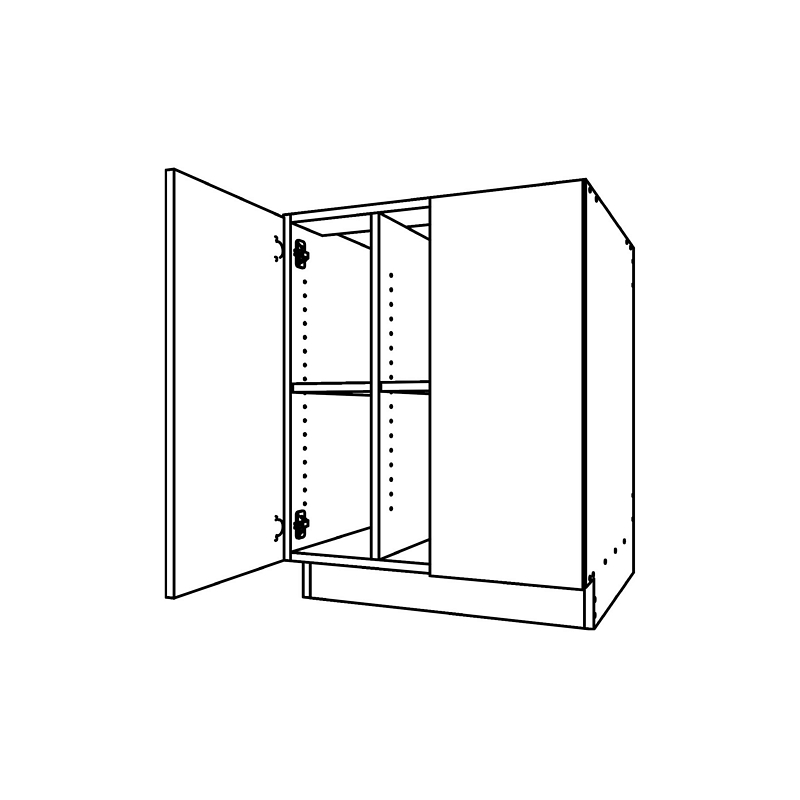

Standard and corner base boxes, open, one-door and two-door configurations with optional vertical dividers, aprons and false fronts.
100 Series

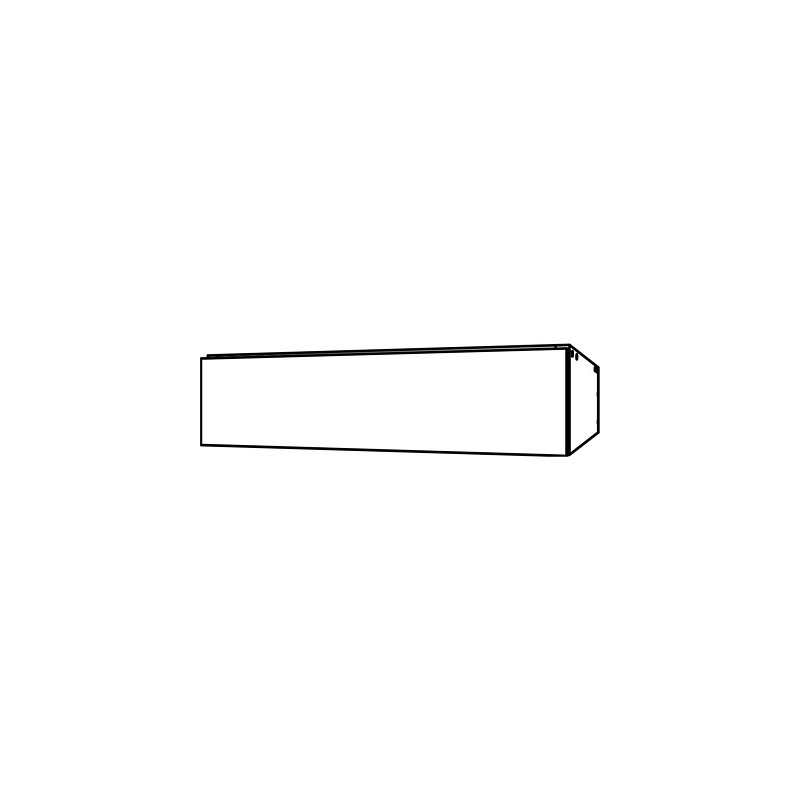

Base Aprons

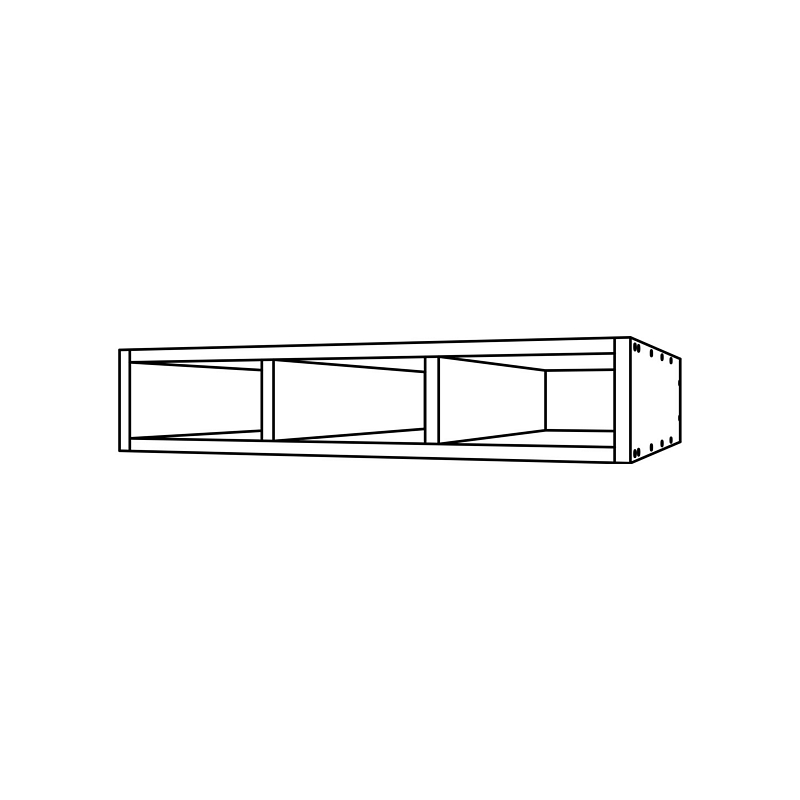

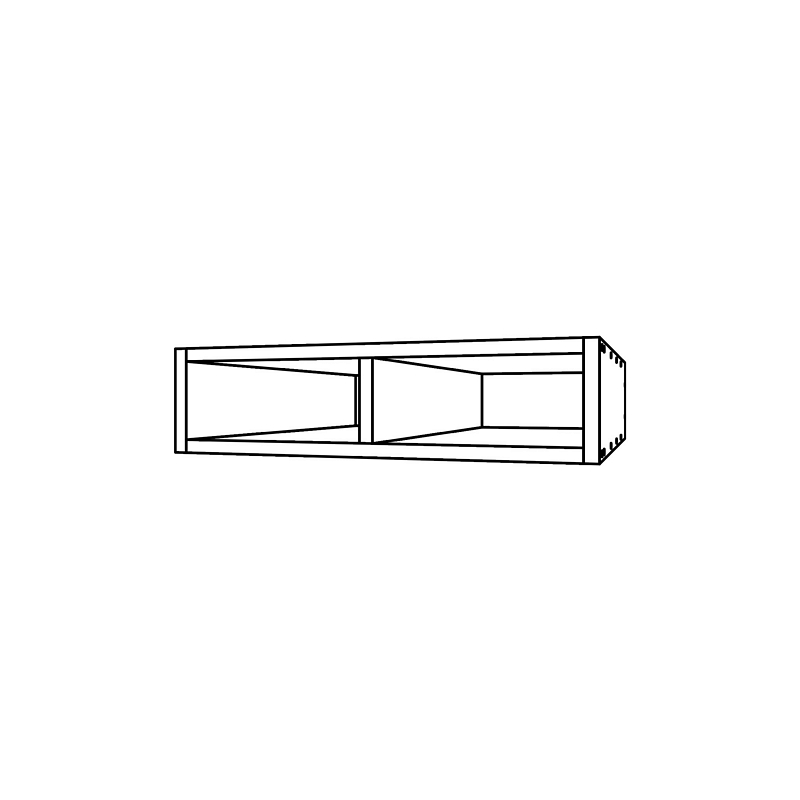

Shallow storage aprons for knee spaces, vanities and desk runs, with or without vertical dividers.
200 Series

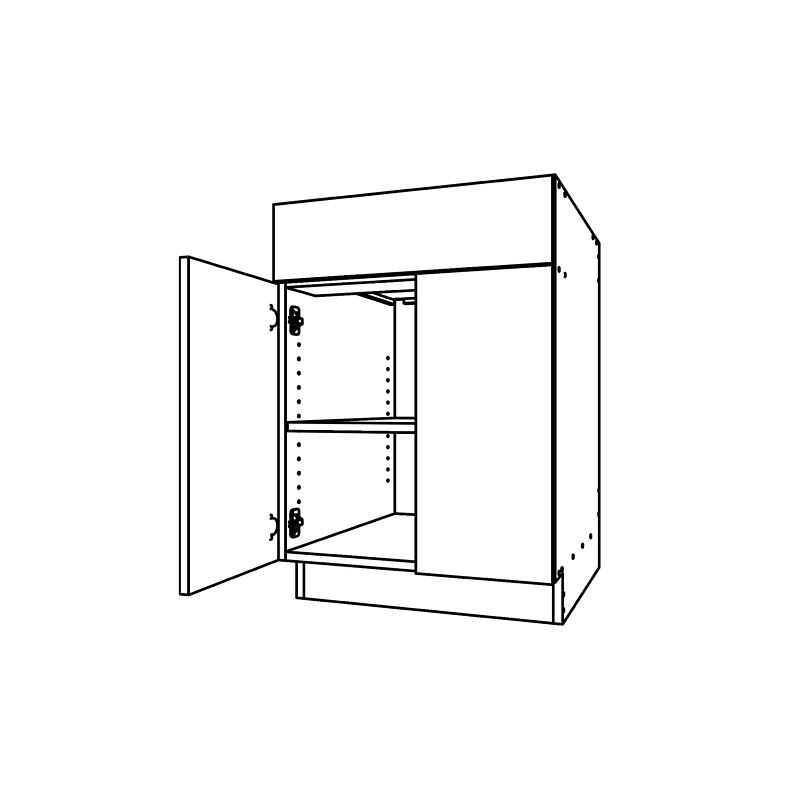

Base Cabinets with Drawers

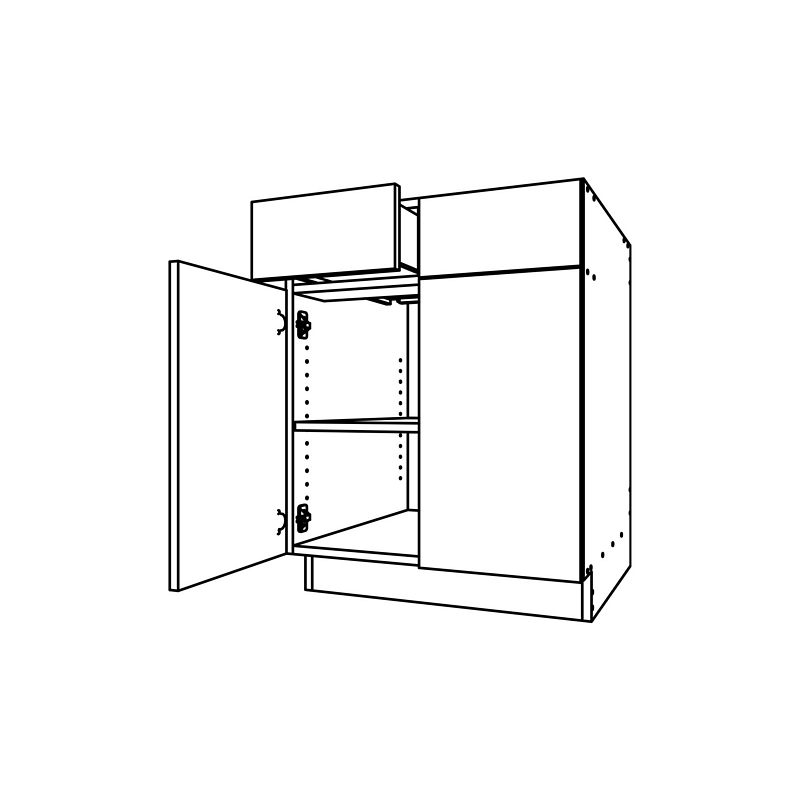

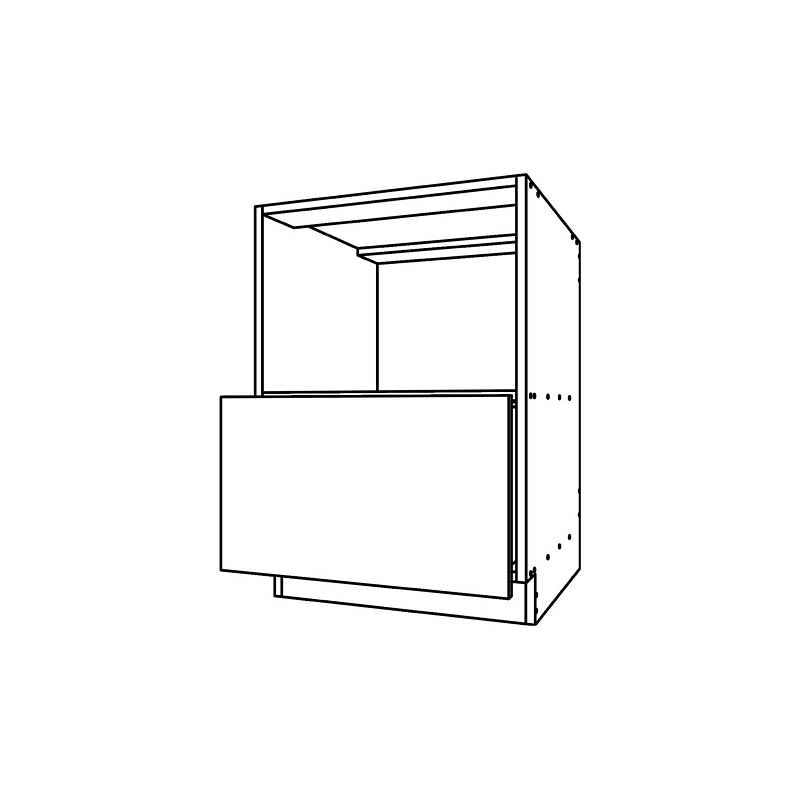

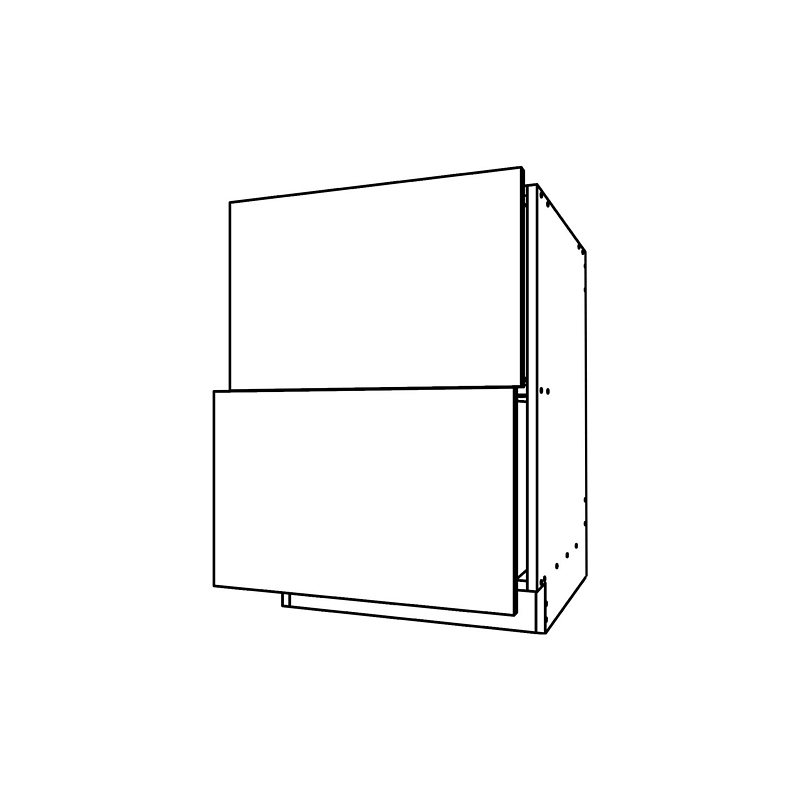

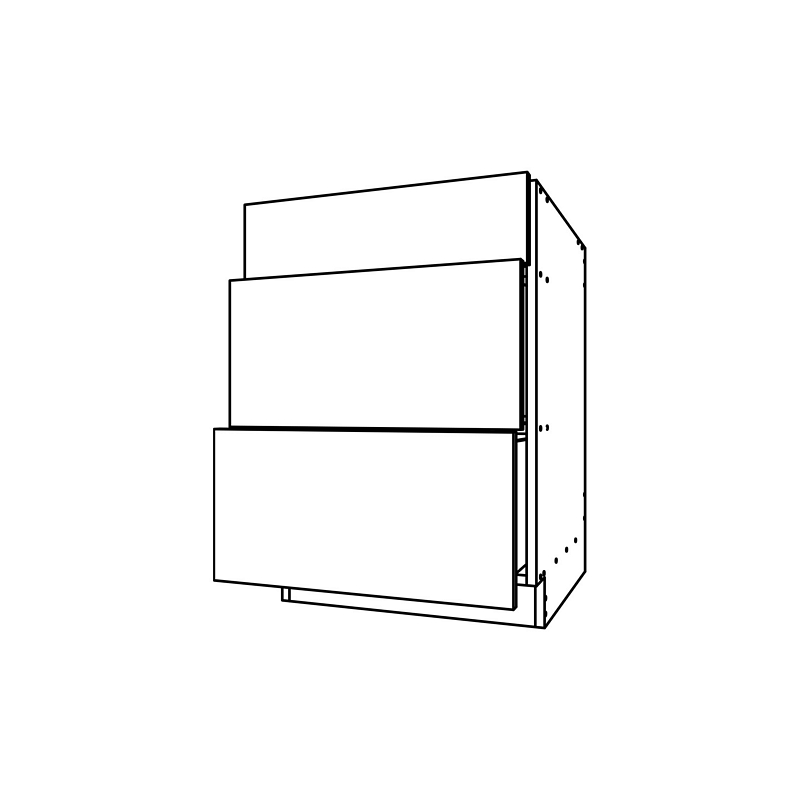

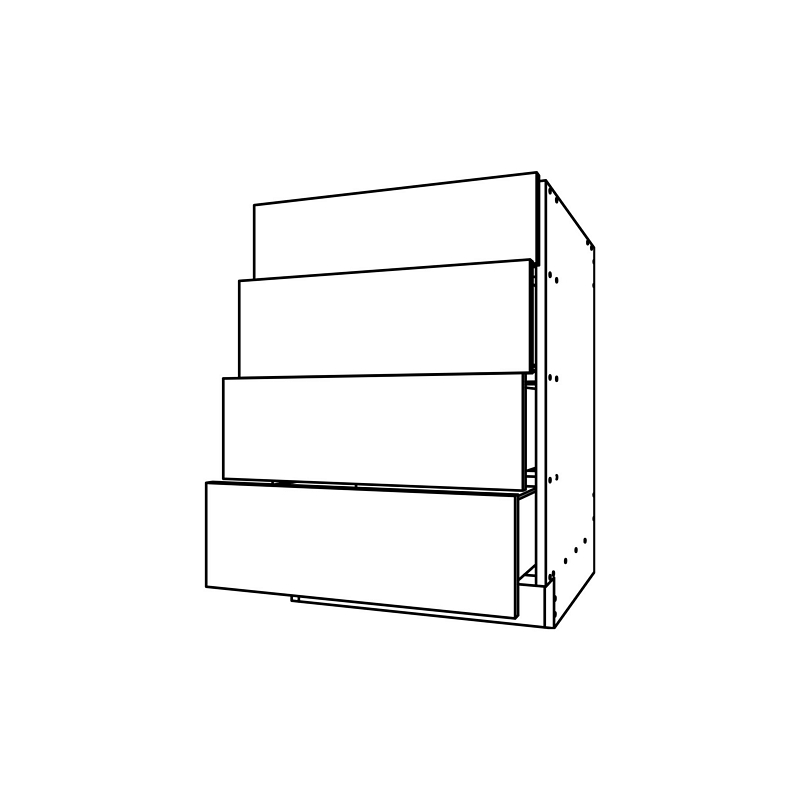

Drawer-and-door base combinations from a single top drawer to a full four-drawer bank.
200 Series

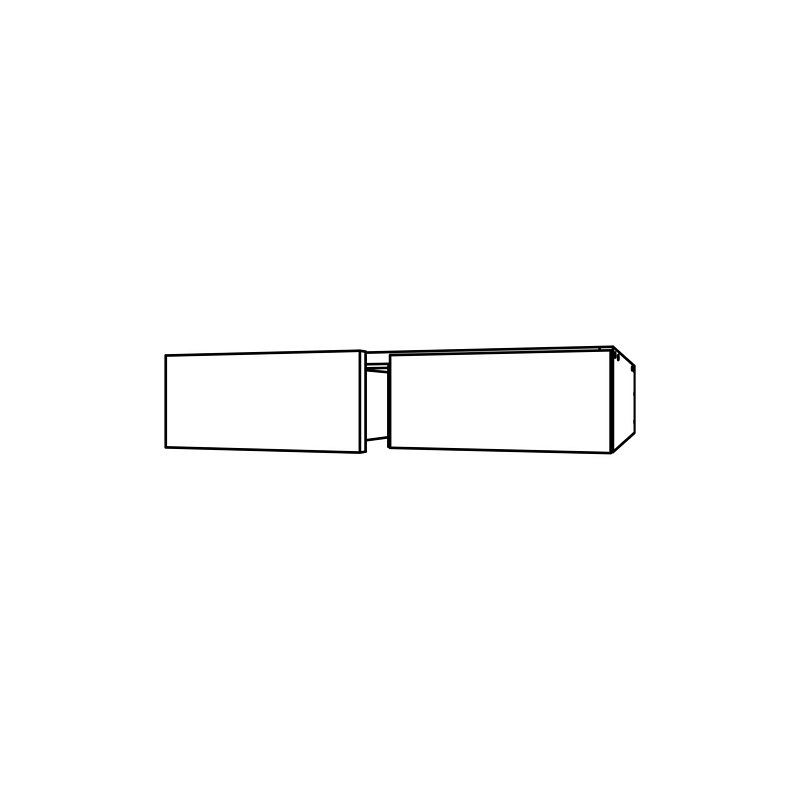

Base Aprons with Drawers
Drawer aprons for vanities, desks and window seats where depth is limited.
300 Series

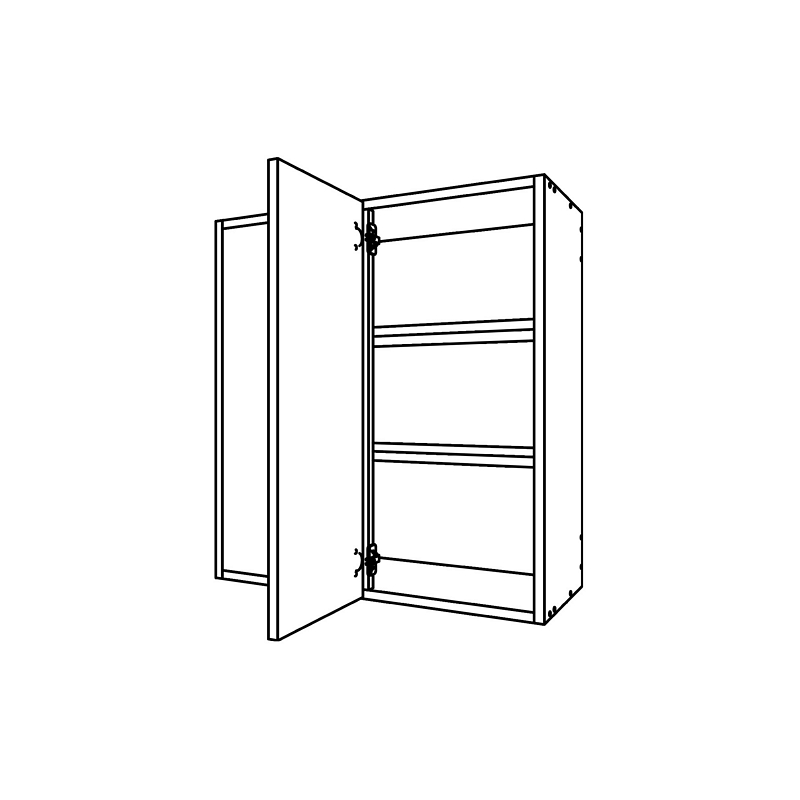

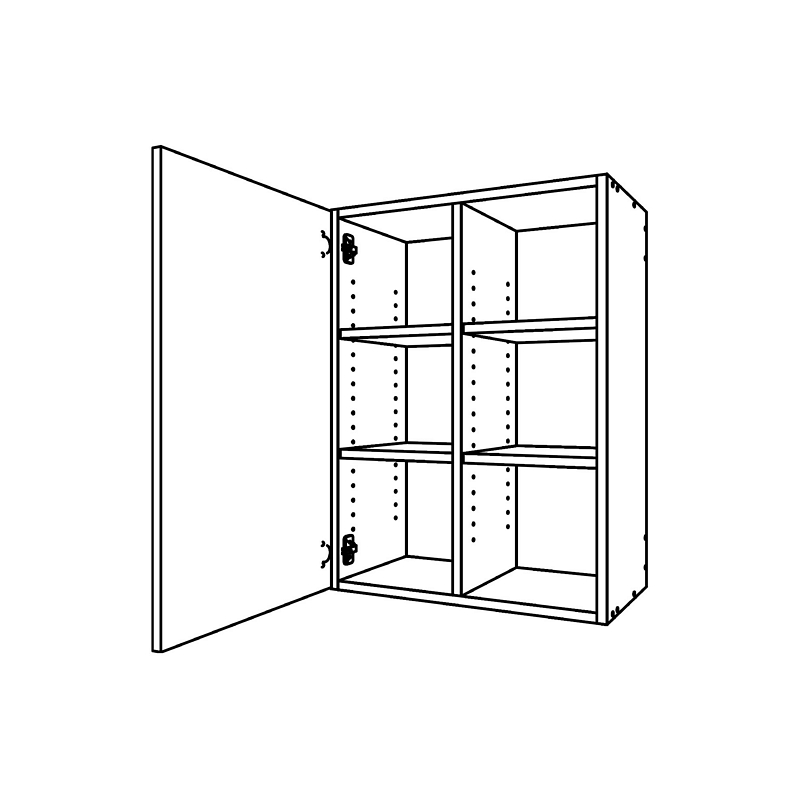

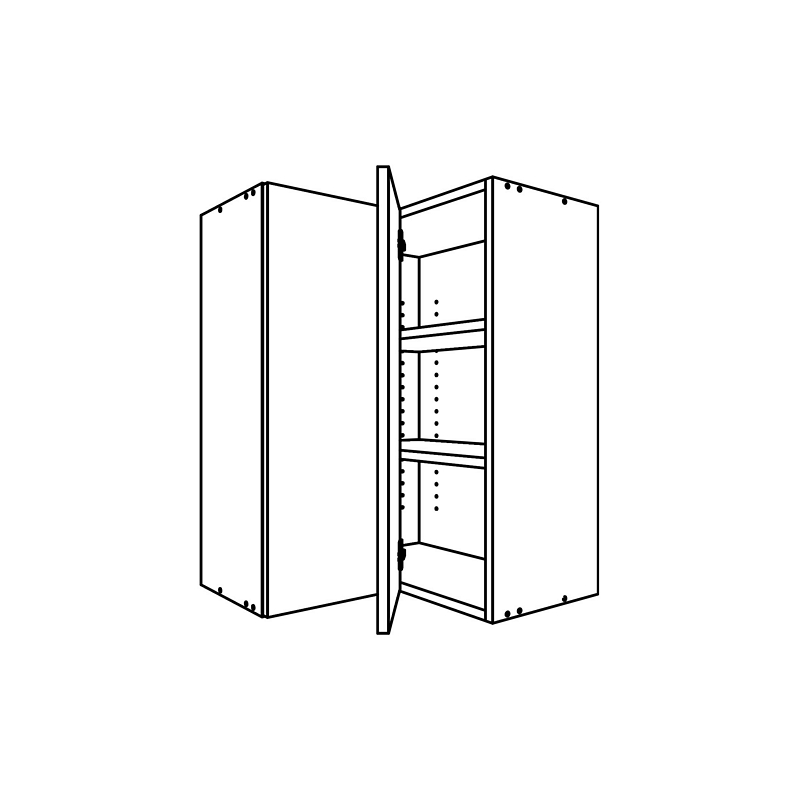

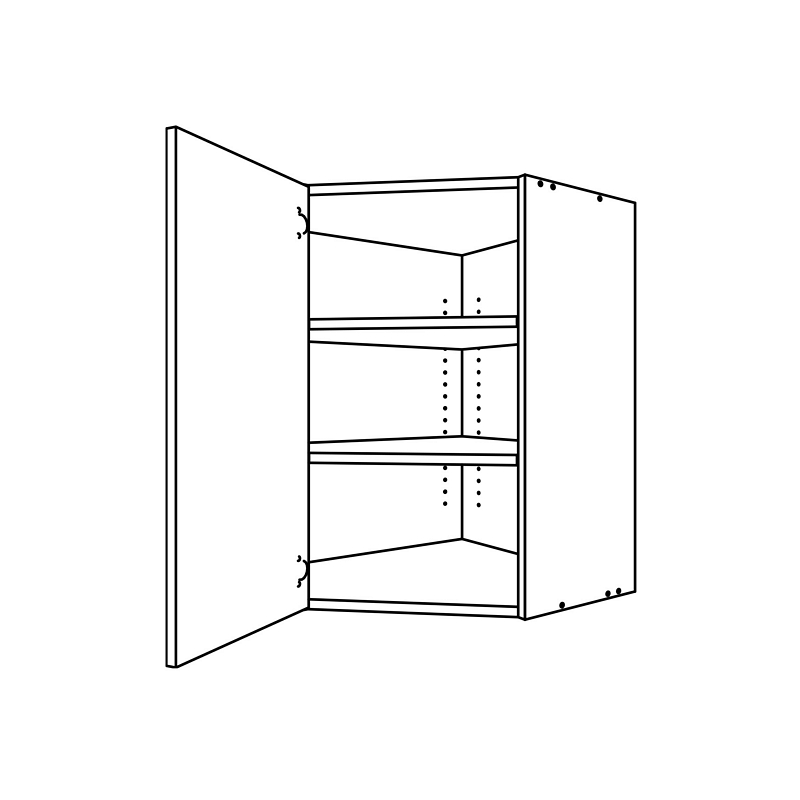

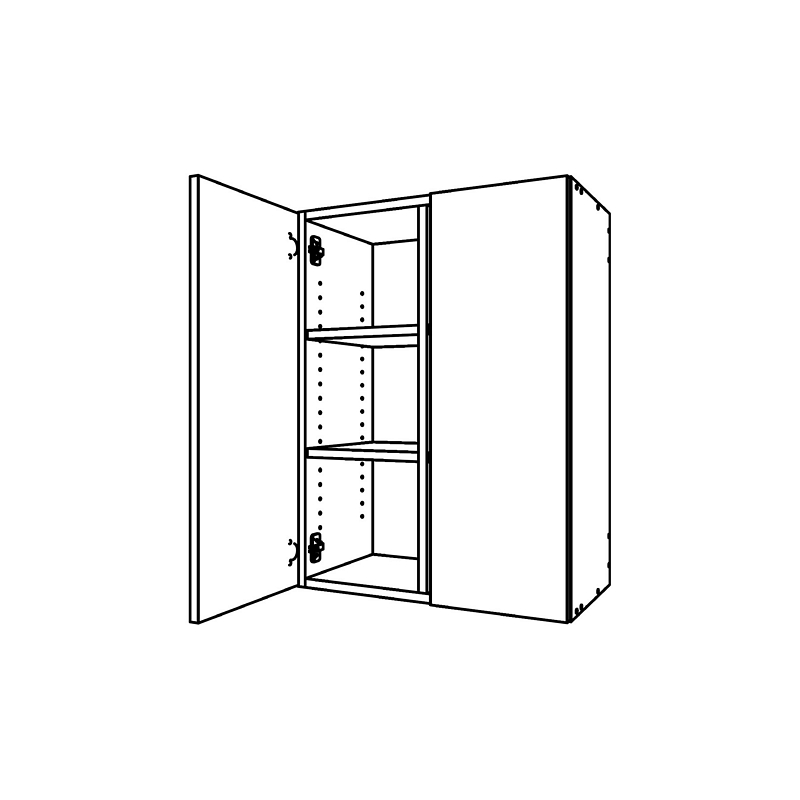

Upper Cabinets

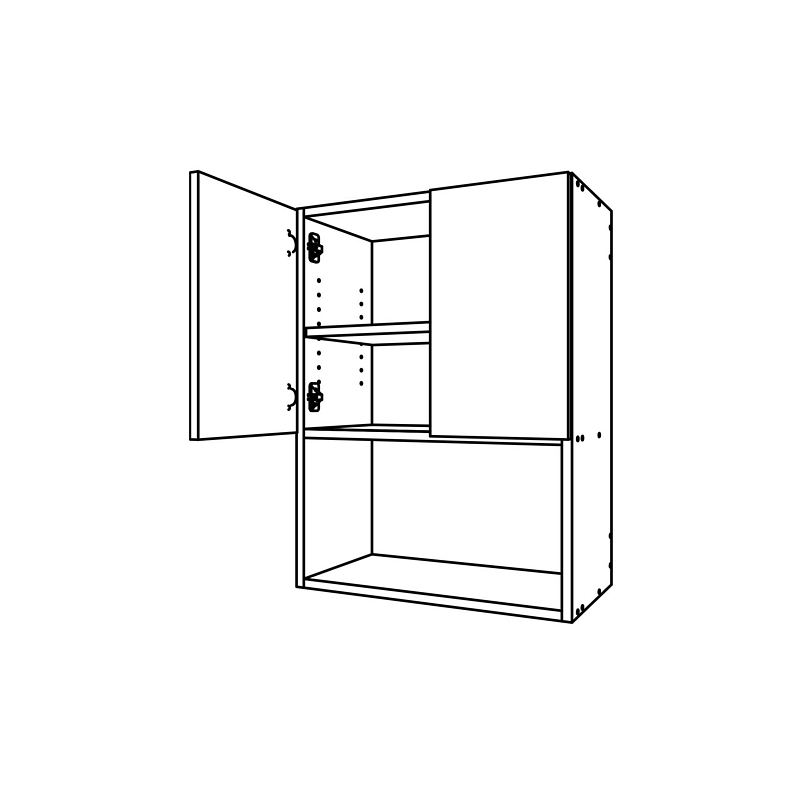

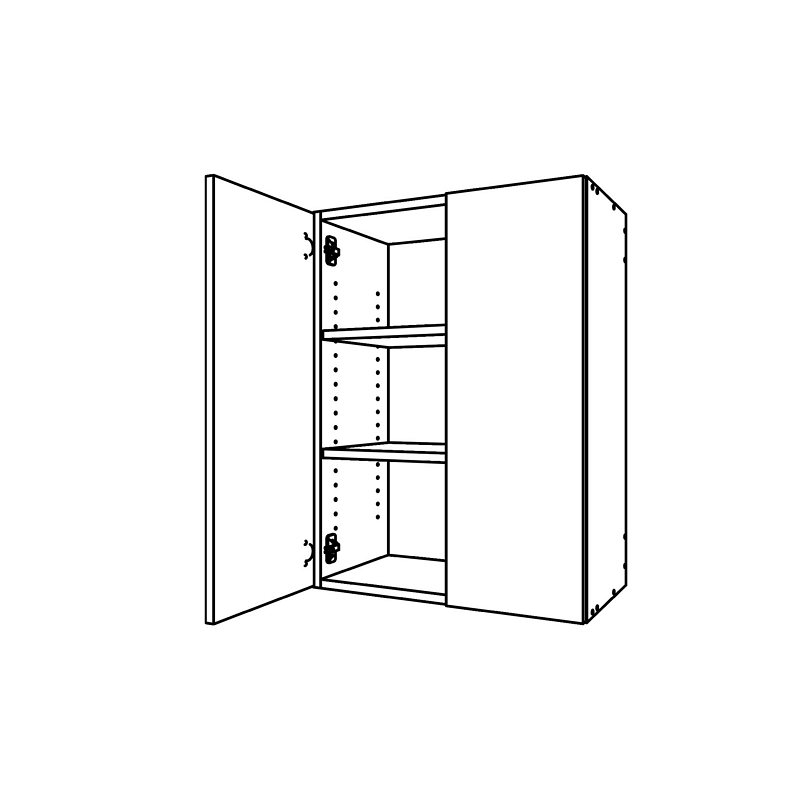

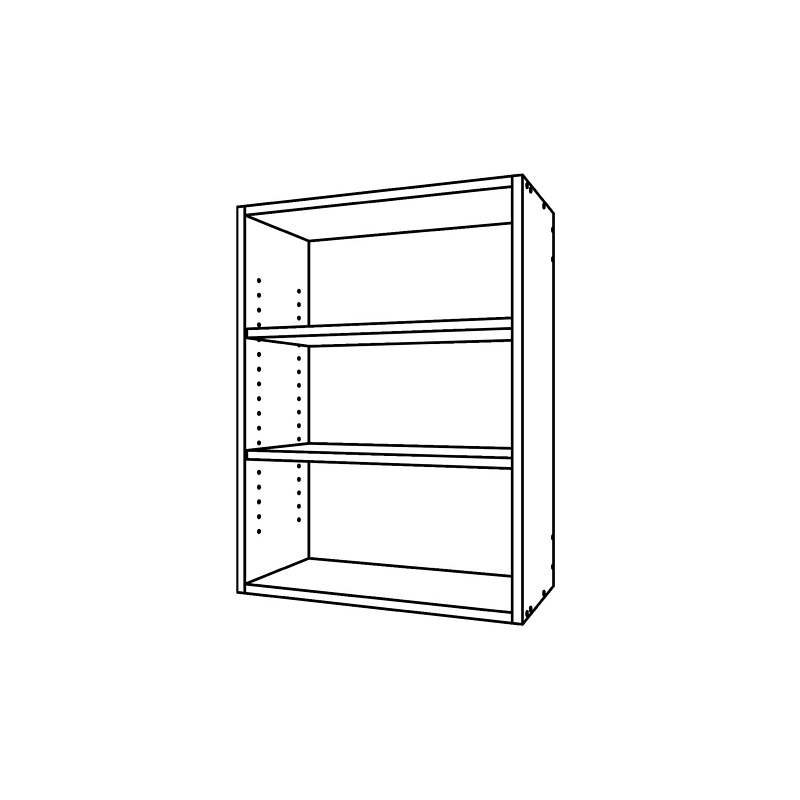

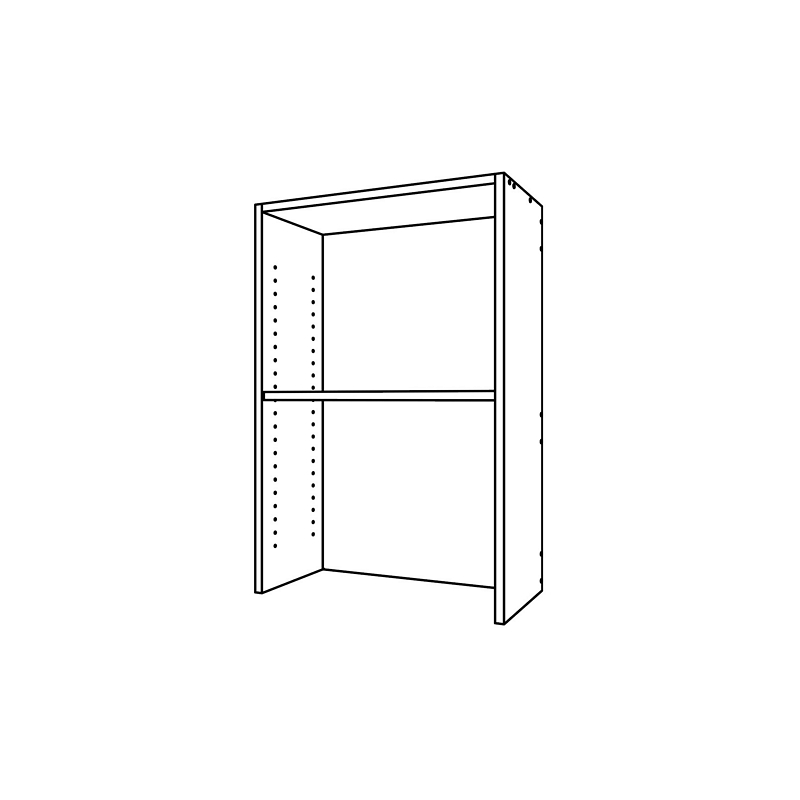

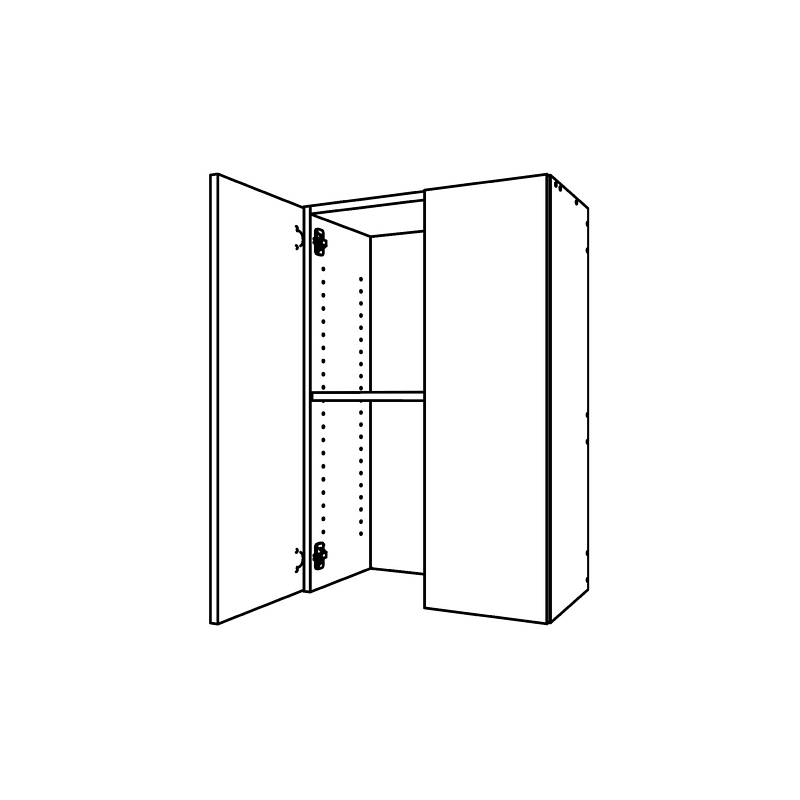

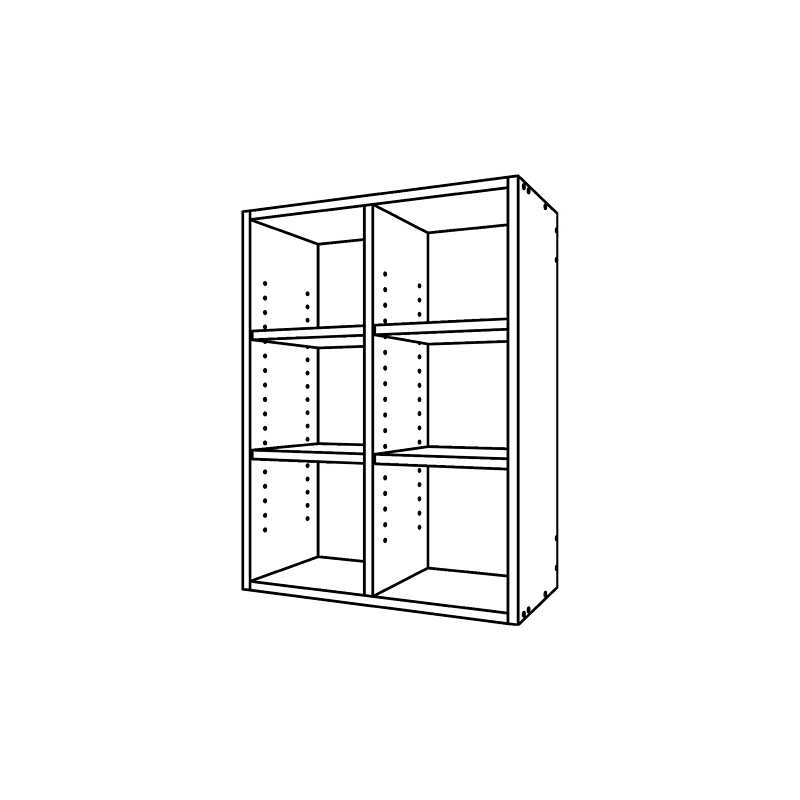

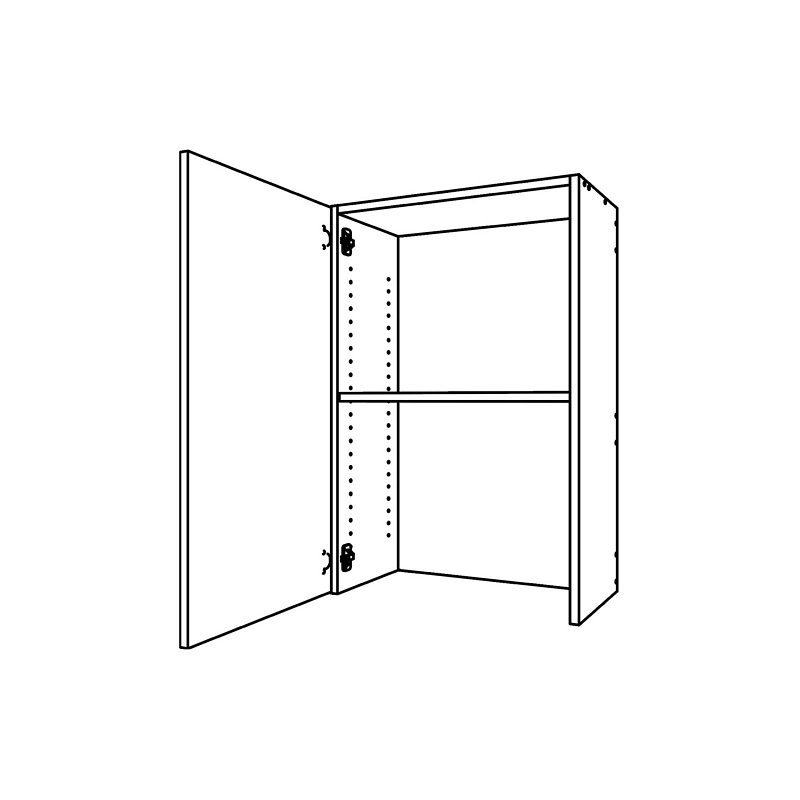

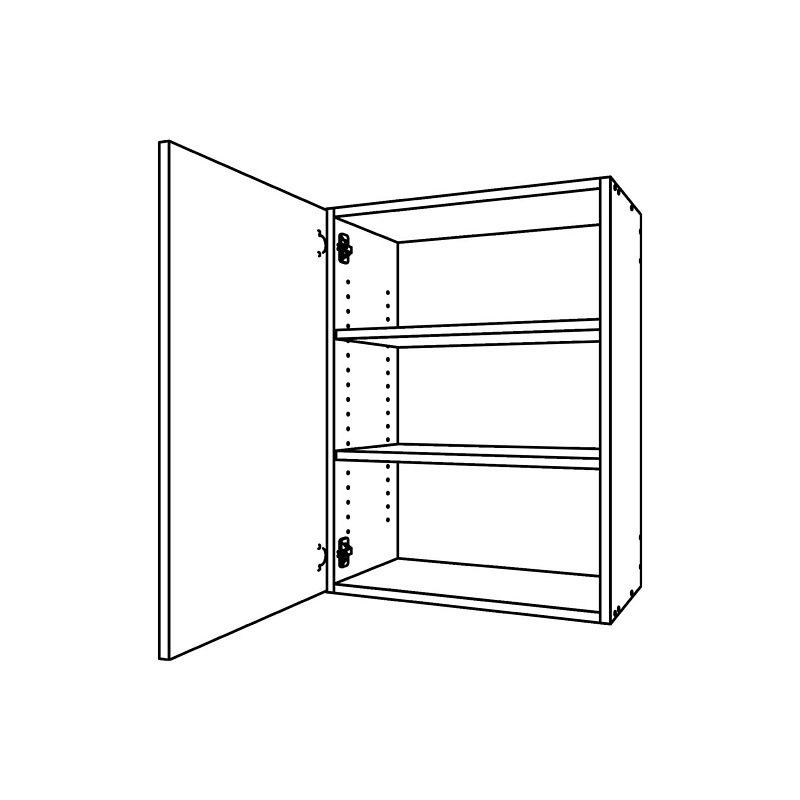

Wall-hung boxes including divided interiors, partial-open shelving and 45-degree corner uppers.
400 Series

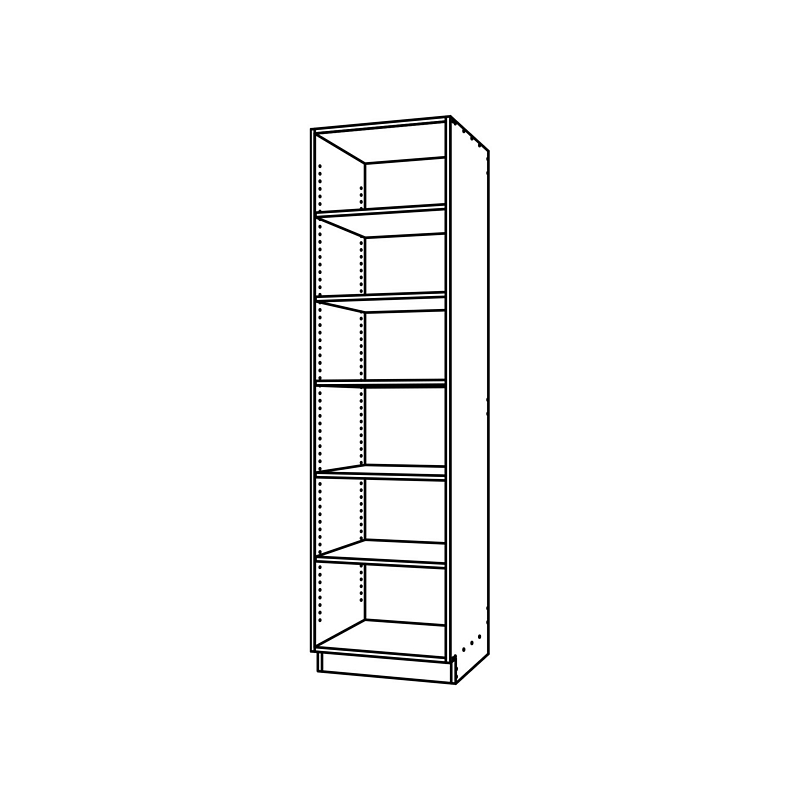

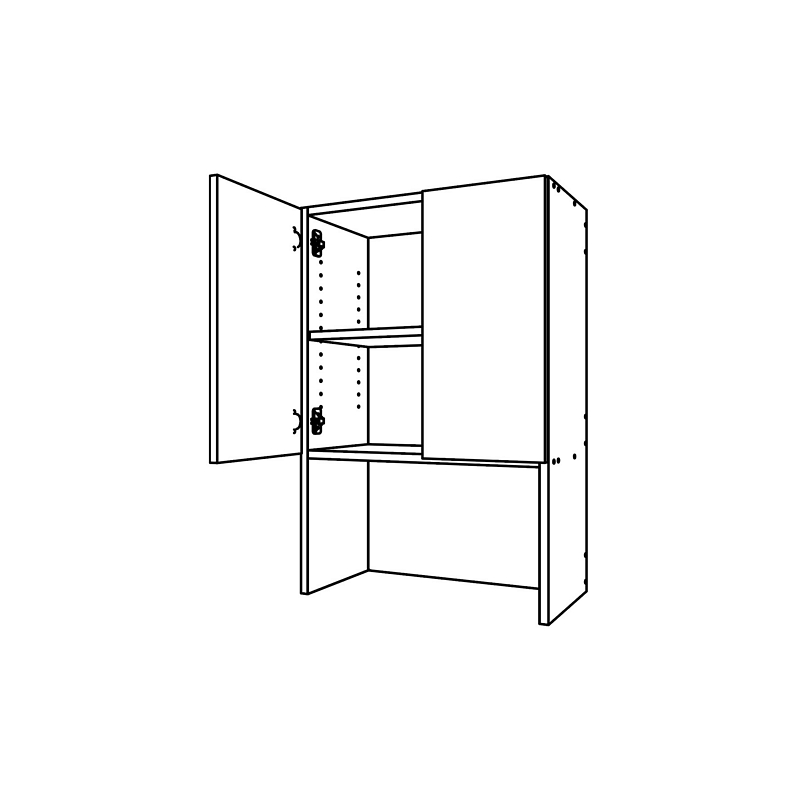

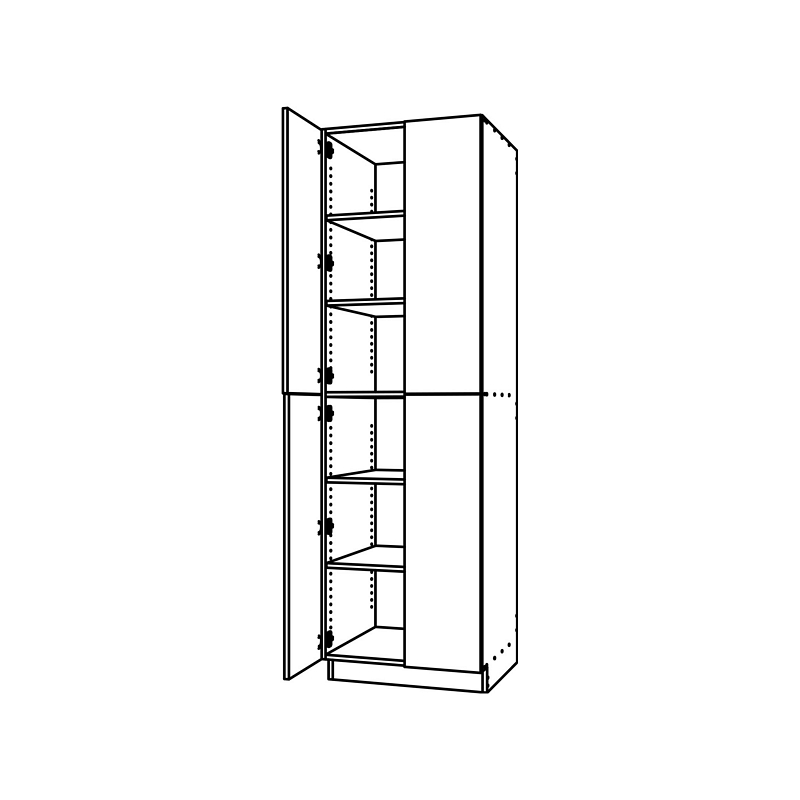

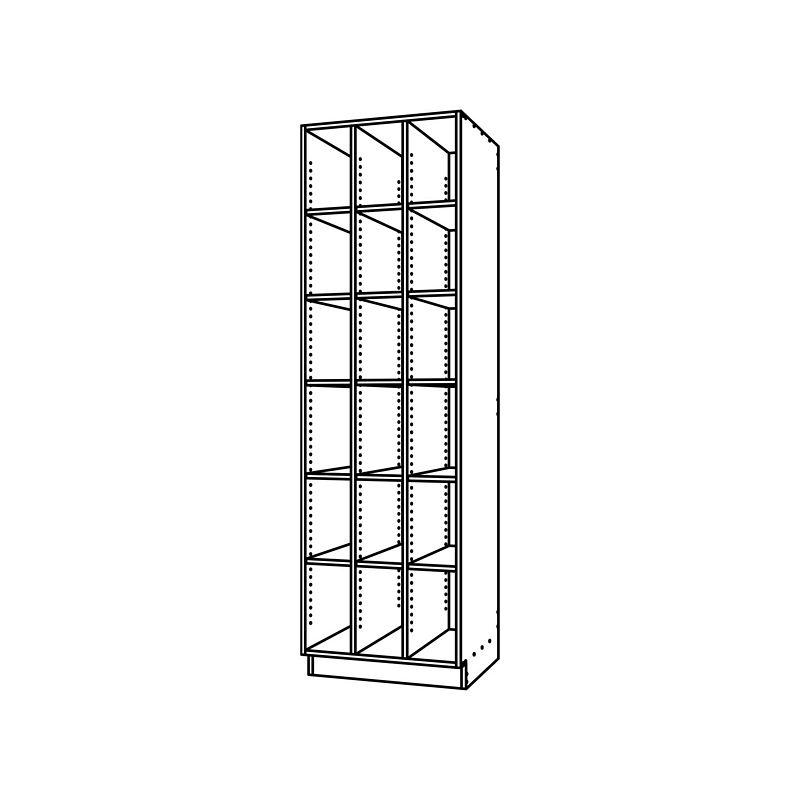

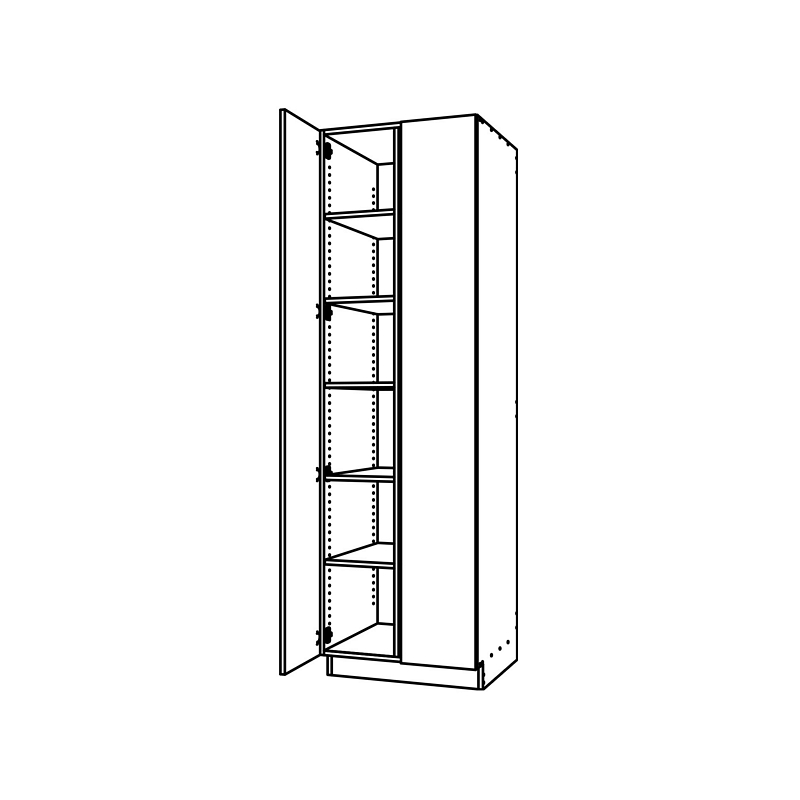

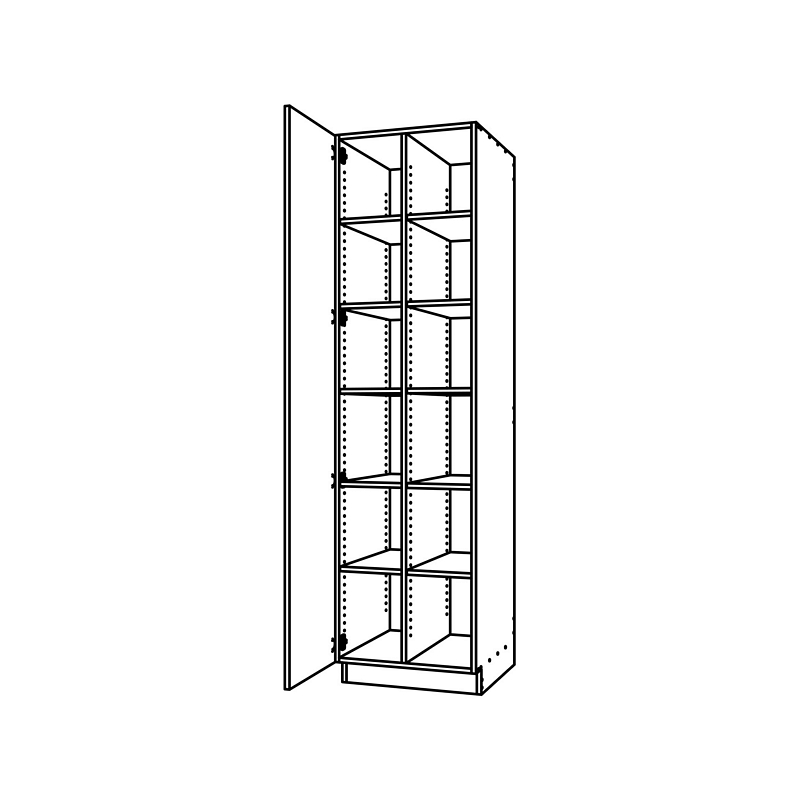

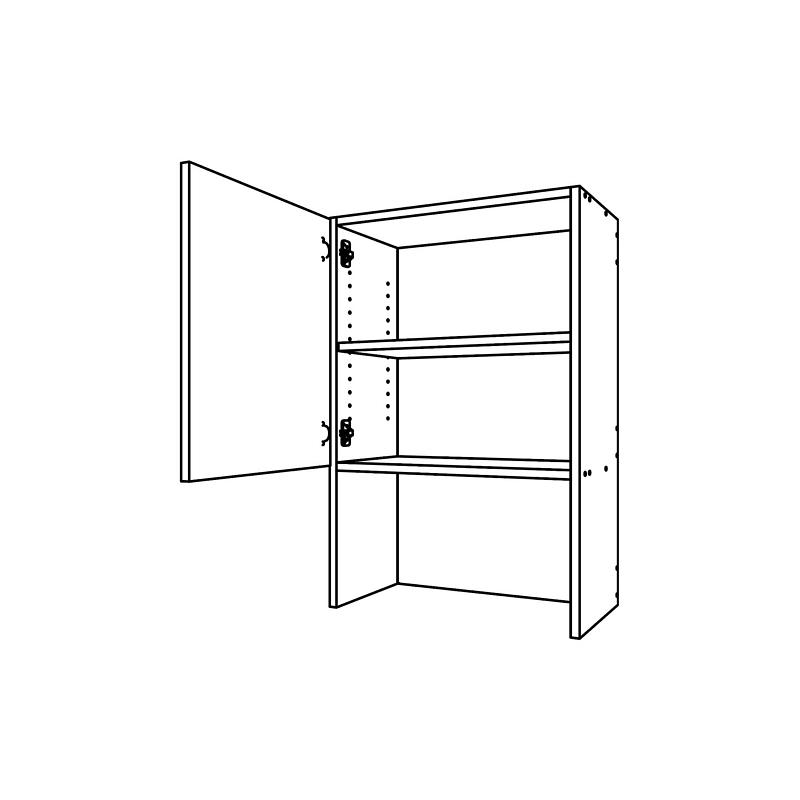

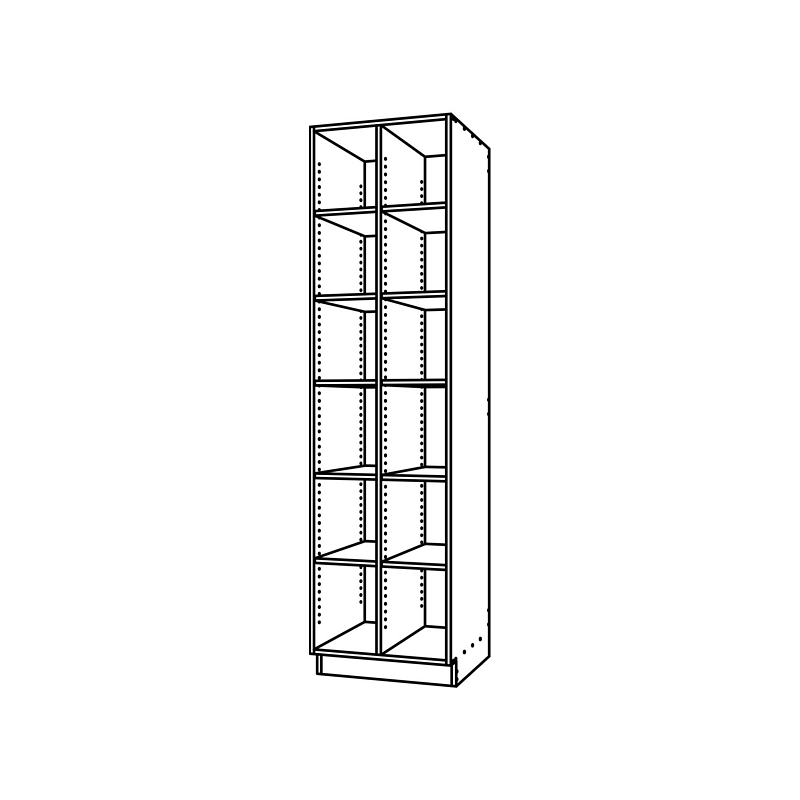

Tall & Hutch Cabinets

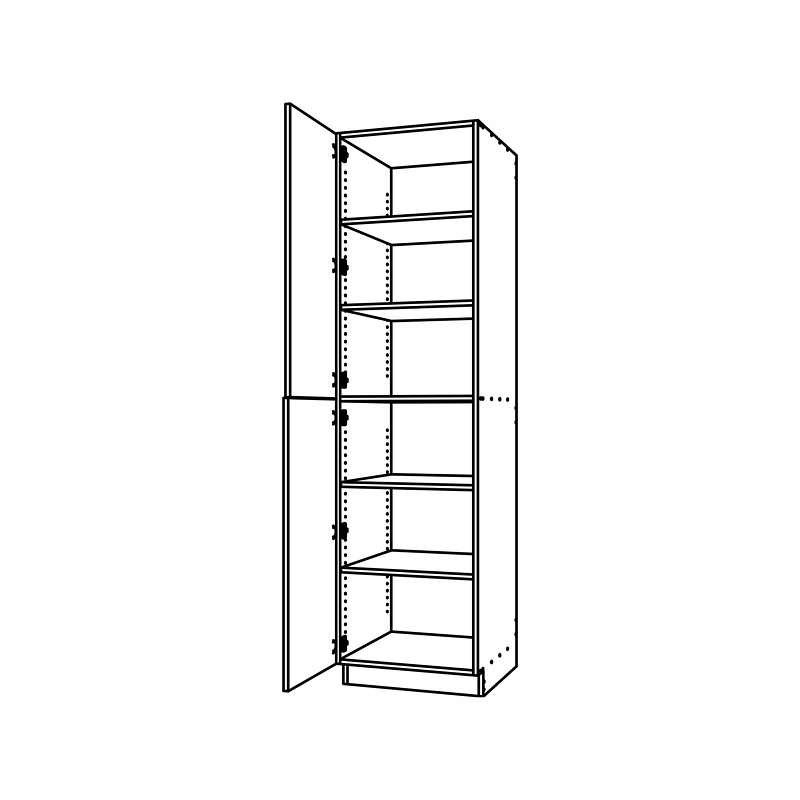

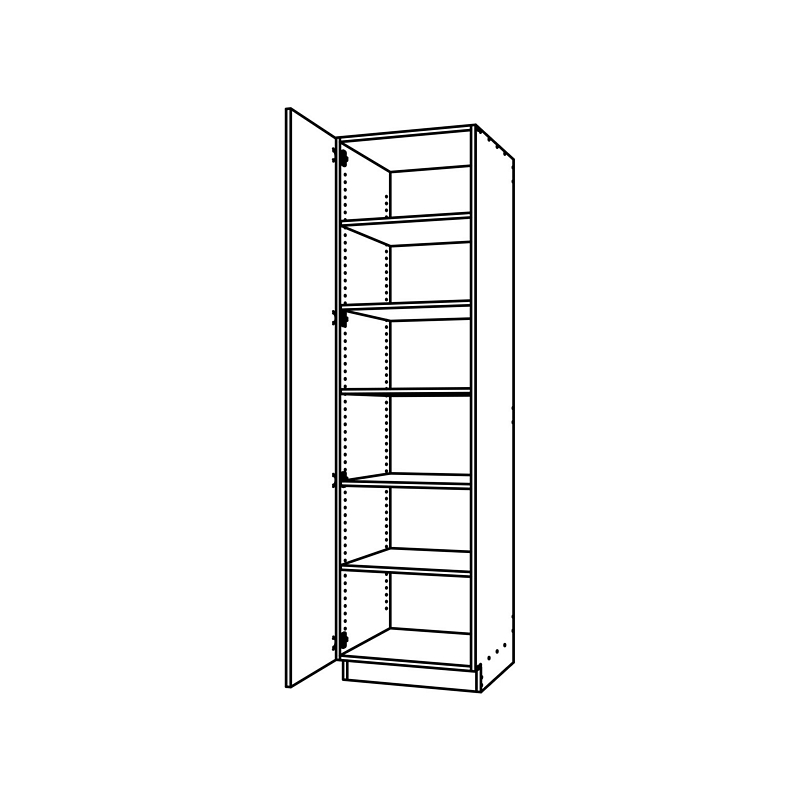

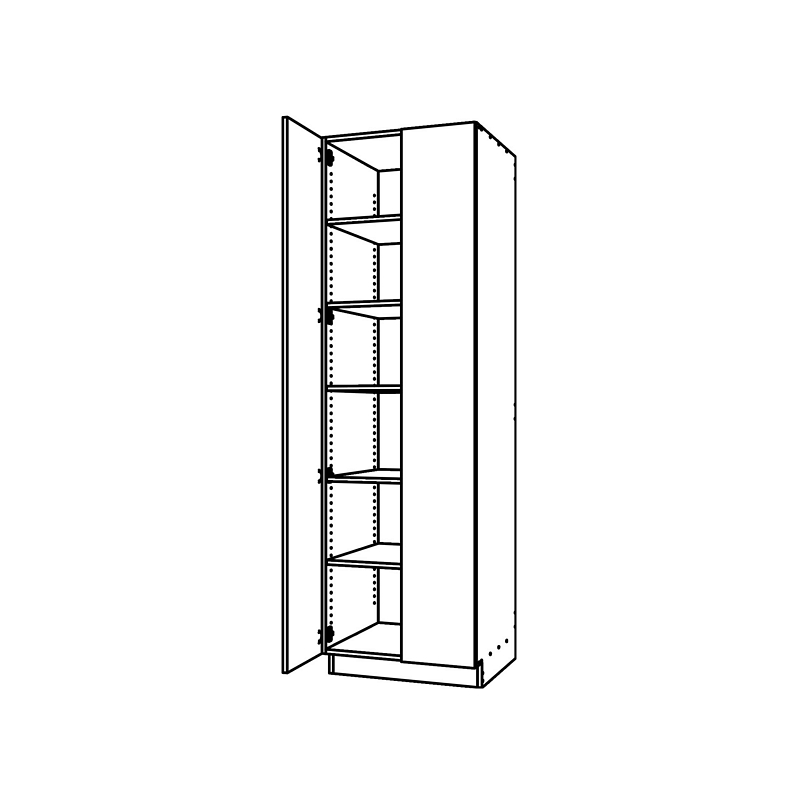

Floor-to-ceiling pantry, utility and hutch boxes in open, divided and multi-door layouts.
800 Series
Tall Cabinets with Drawers

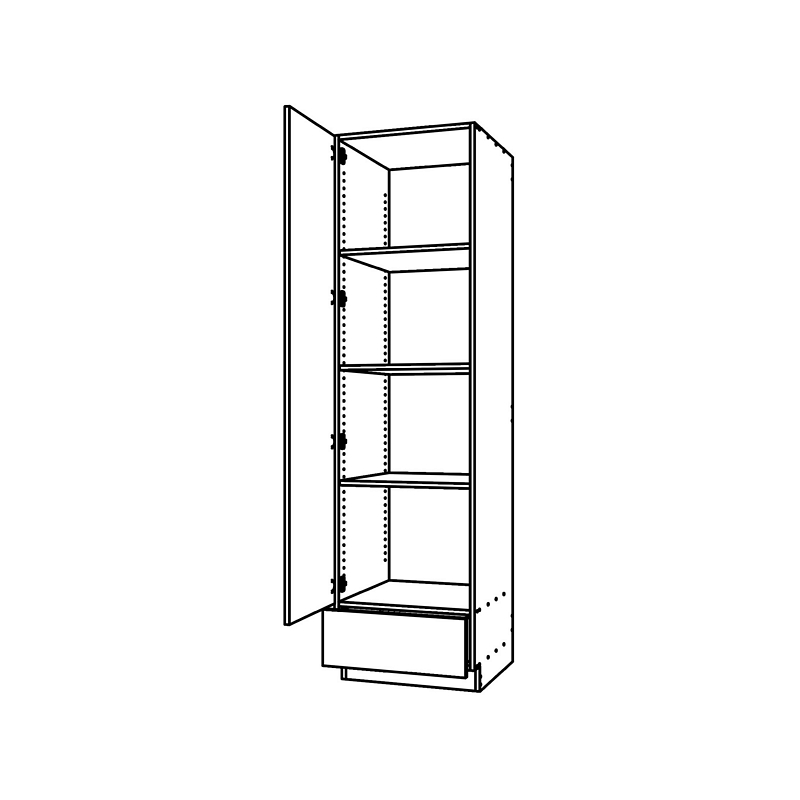

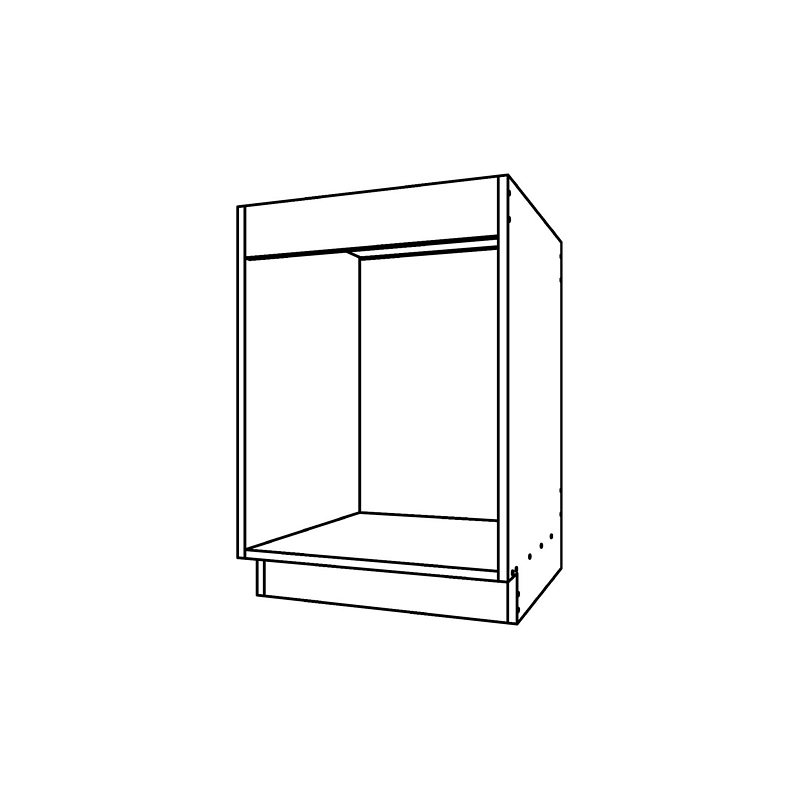

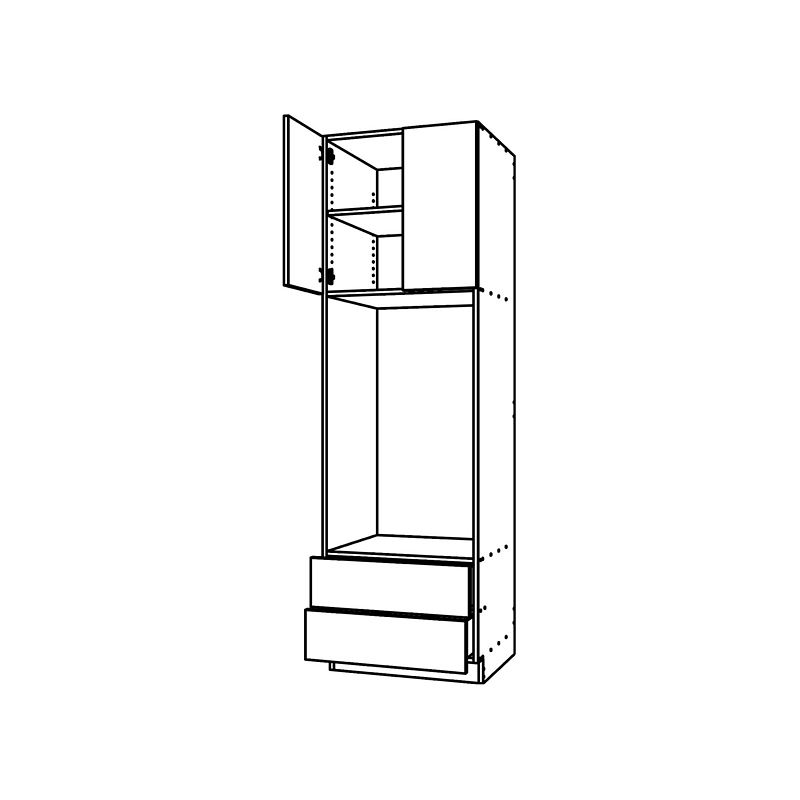

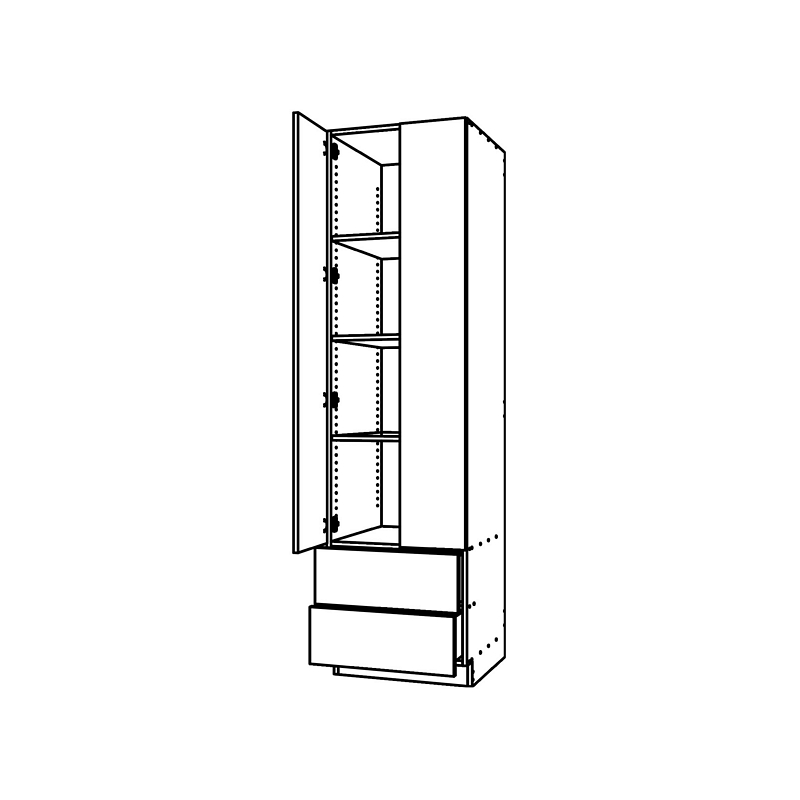

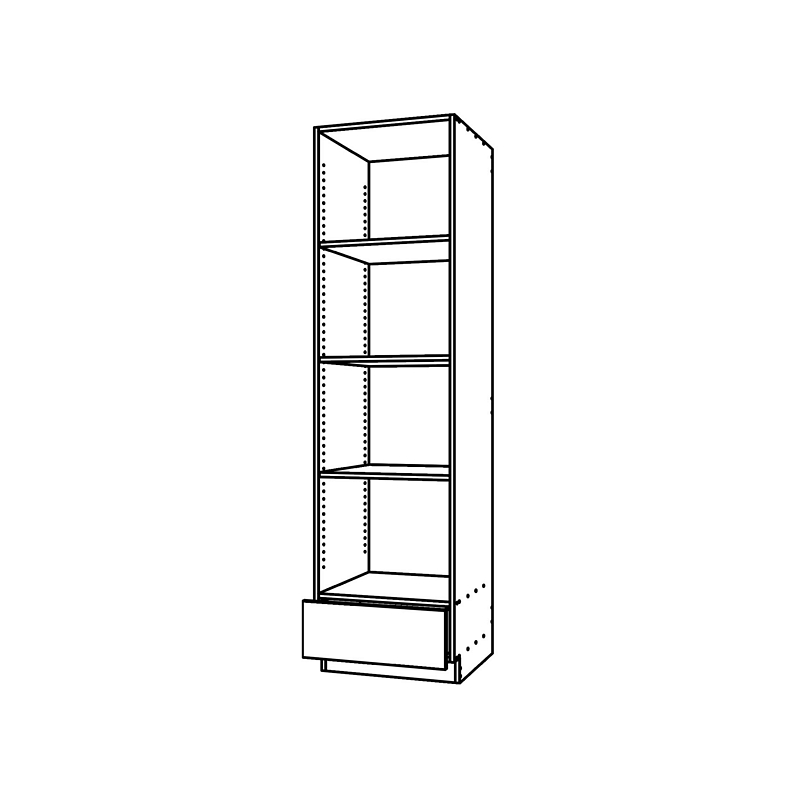

Tall boxes with integrated drawer banks, including oven cabinet configurations.
900 Series

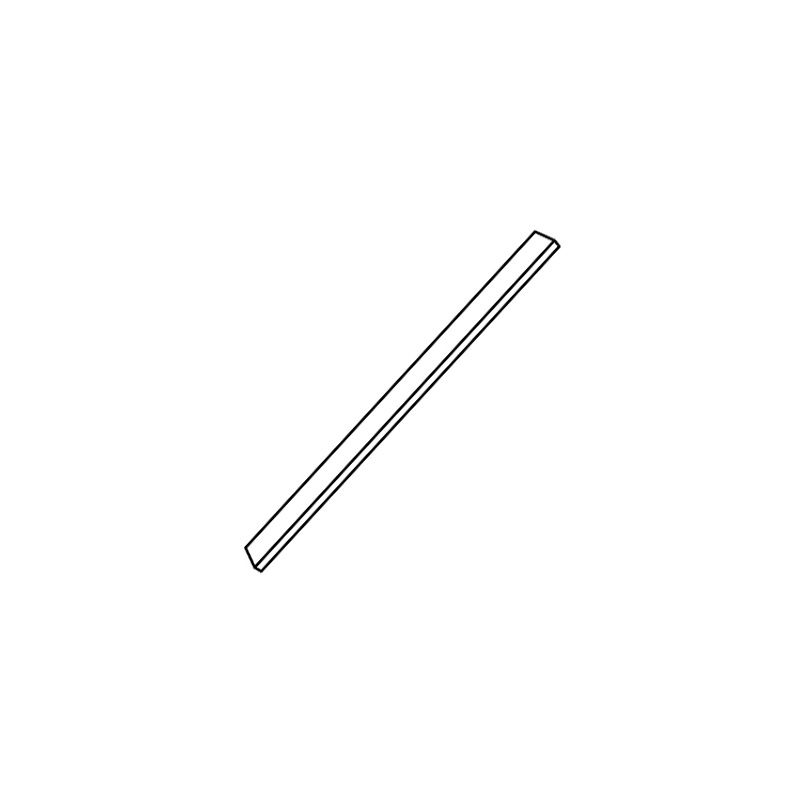

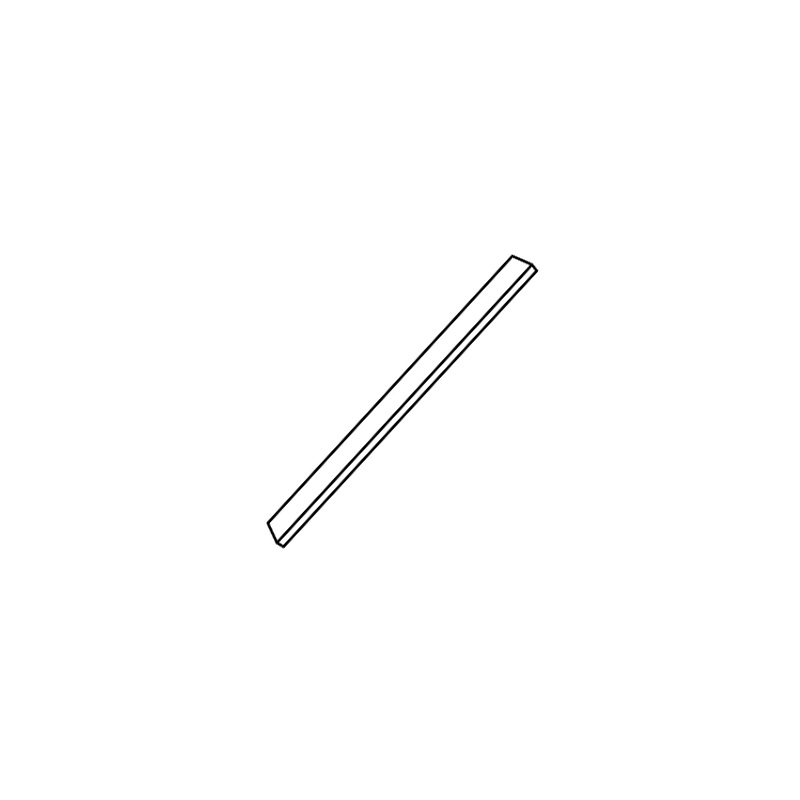

Fillers

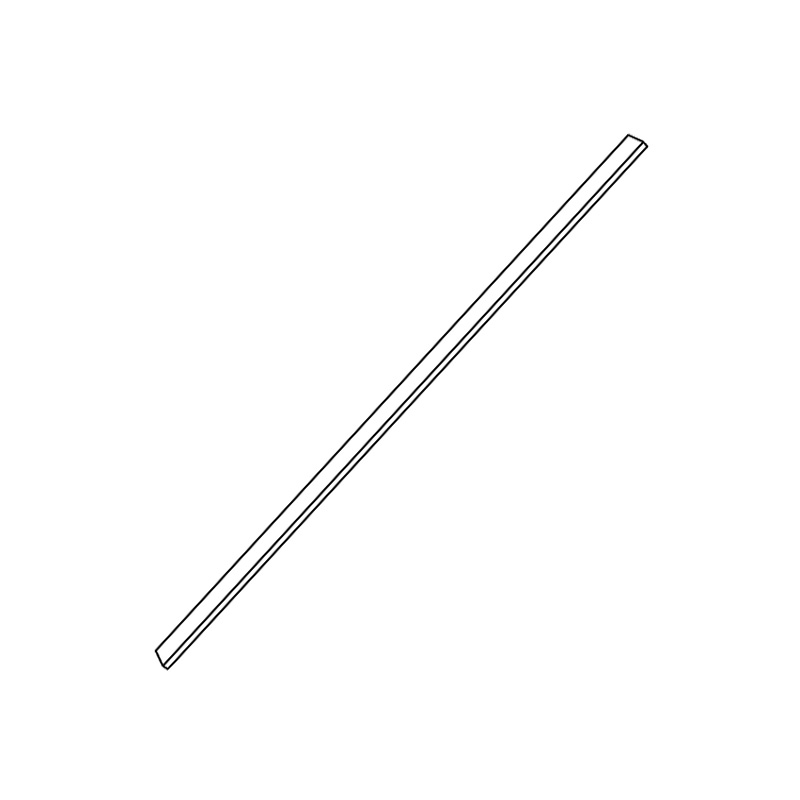

Scribe and filler stock cut to your height and width for clean transitions at walls and appliances.
