Frameless / Euro Style Cabinets
A 4-sided box made from 3/4″ material with hinges and plates that mount to the cabinet interior. No face frame is used on these cabinets and there is often little gap between cabinet doors.
Full Overlay Hinge & Plate Pairings

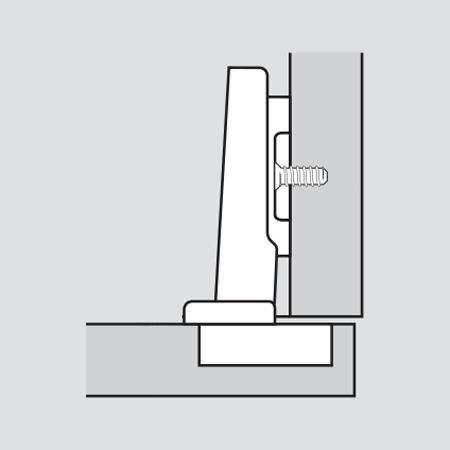

Full Overlay Information
These pairings will set the door to cover nearly all of the front edge of the cabinet. Commonly referred to as a “Euro Style” hinge.
Hettich Pairings

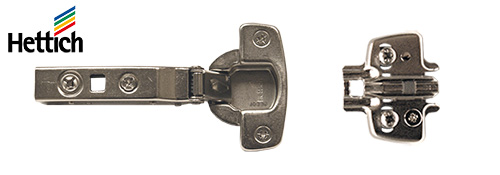

Soft Close Pairing
HINGE: 110 Degree, Soft Close (HE-110FSC)
PLATE: 0mm Frameless Plate (HE-0MMFLADJ)

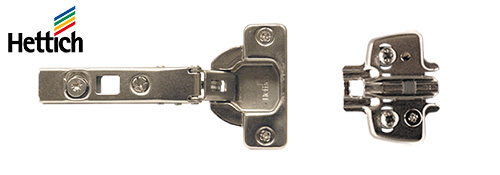

Regular Close Pairing
HINGE: 110 Degree (HE-110F)
PLATE: 0mm Frameless Plate (HE-0MMFLADJ)
Blum Pairings

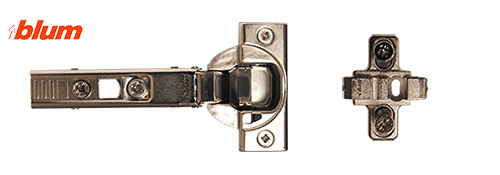

Soft Close Pairing
HINGE: 110 Degree, Soft Close (HIN-BL110SC)
PLATE: 0mm Frameless Plate (PLA-BL0FL)

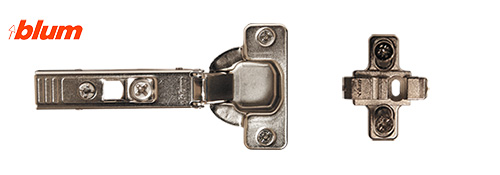

Regular Close Pairing
HINGE: 120+ Degree (HIN-BL120+F)
PLATE: 0mm Frameless Plate (PLA-BL0FL)
CMW Pairings

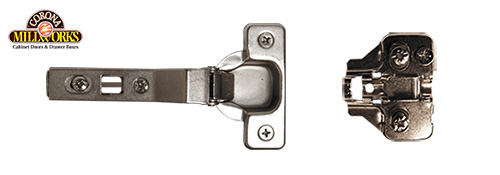

Soft Close Pairing
HINGE: 110 Degree, Soft Close (SCH-110F)
PLATE: 0mm Frameless Plate (FAPSC-0)

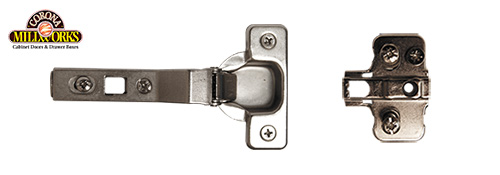

Regular Close Pairing
HINGE: 120 Degree (H-120)
PLATE: 0mm Frameles Plate (FAP)
Inset Hinge & Plate Pairings

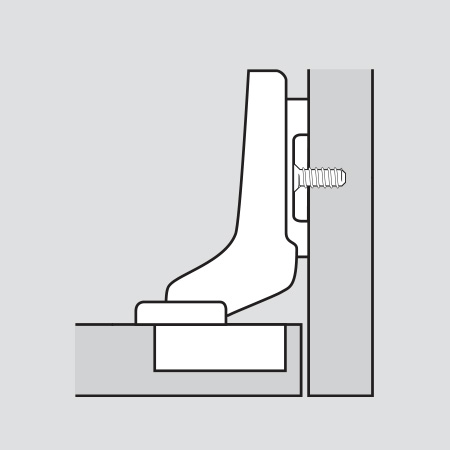

Inset Information
These pairings will set the doors to be fit entirely withing the cabinet opening and they sit flush cabinet sides.
Hettich Pairings
Soft Close Pairing
HINGE: 110 Degree, Soft Close (HE-110ISC)
PLATE: 3mm Frameless Plate (HE-3MMFLADJ)
Regular Close Pairing
HINGE: 110 Degree (HE-110I)
PLATE: 3mm Frameless Plate (HE-3MMFLADJ)
CMW Pairings
Soft Close Pairing
HINGE: 110 Degree, Soft Close (SCH-110I)
PLATE: 0mm Frameless Plate (FPSC-0)
Regular Close Pairing
NOT
AVAILABLE
Custom Overlay Options
In addition to stocked hinges and plates, Ultimate Cabinets, Inc. can special order hardware from Hettich and Blum to accommodate most overlay configurations. Your account manager or customer service representative can assist with questions you may have regarding non-stocked options.
