Premium Woods. Broad Styles. Custom Options.
Ultimate Cabinets, Inc. Drawer Boxes are available in a wide range of materials and construction options. Each drawer box is hand crafted to your exact specifications. Our friendly customer service representatives can provide complete information on all construction and material options including solid wood, plywood, availability, and pricing.
Our goal is to provide you with high-quality custom boxes on time and on budget.
Drawer Box Construction Methods
Construction Options to Fit Any Style or Budget
Ultimate Cabinets, Inc. offers a wide range of construction materials and assembly options for our drawer boxes. No matter the material or construction option you choose, all of our drawer boxes are designed to last and they are manufactured to the highest build standards.

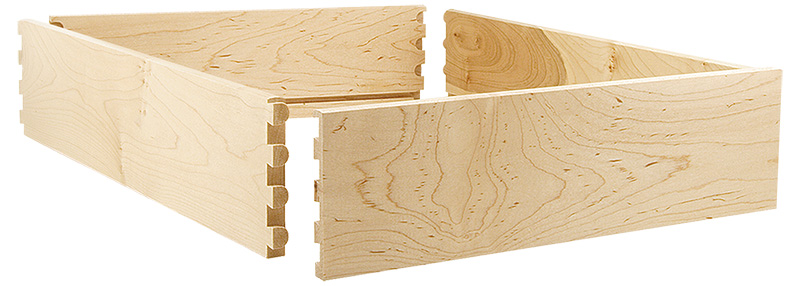

Dovetail Construction
Feature a series of pins cut to extend from the end of one board to interlock with a series of tails cut into the end of another board. Once glued, a wooden dovetail joint requires no mechanical fasteners.

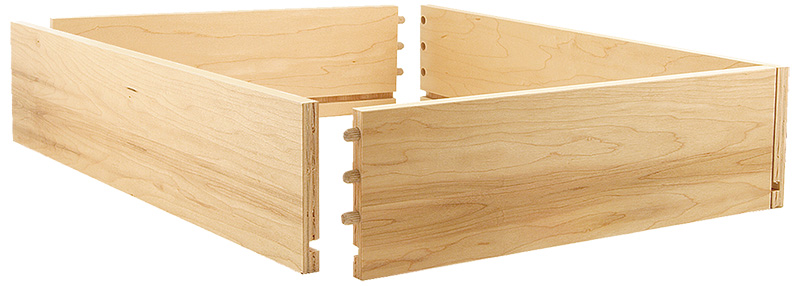

Doweled Construction
Doweled construction offers good quality at a very affordable price. Another benefit is that doweled drawer boxes can be flat-packed for easy shipping and on-site assembly.
Drawer Box Side Options

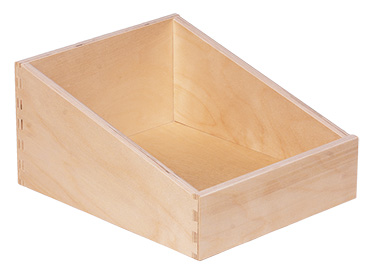

Angled Sides
Standard Sides

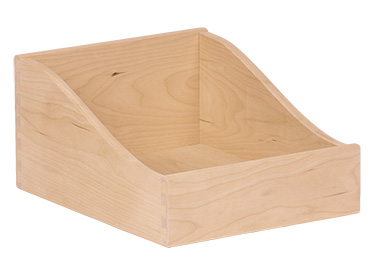

Scalloped Sides
Available Drawer Box Materials
High-Quality Materials & Affordable Prices
Ultimate Cabinets, Inc. strives to make a wide variety of high-quality materials available to our customers. Offering different material options allows our customers the ability to design cabinets and drawer boxes that fit the style they need, on a budget they can afford.
Side Materials
Pre-Finished Plywood
- 1/2″ 9-Ply Baltic Birch
- 5/8″ 11-Ply Baltic Birch
- 1/2″ Multi-Ply Maple
- 5/8″ Multi-Ply Maple
Unfinished Plywood
- 1/2″ 9-Ply Baltic Birch
- 5/8″ 11-Ply Baltic Birch
- 1/2″ Multi-Ply Maple
Solid Wood (Finishing After Assembly Available)
- 1/2″ or 5/8″ Alder
- 1/2″ or 5/8″ Aspen
- 1/2″ or 5/8″ Beech
- 1/2″ or 5/8″ Cherry
- 1/2″ or 5/8″ Maple (Select White)
- 1/2″ or 5/8″ Maple (Soft)
- 1/2″ or 5/8″ Oak (Red)
Melamine (Available in Dowel Construction Only)
- 1/2″ Almond
- 1/2″ Black
- 1/2″ Fog Gray
- 1/2″ Maple
- 1/2″ or 5/8″ White
- 1/2″ White (with MDF core)
Bottom Materials
Pre-Finished Plywood
- 1/4″ or 1/2″ Baltic Birch
- 1/4″ or 1/2″ Maple
Unfinished Plywood
- 1/4″ or 1/2″ Alder
- 1/4″ or 1/2″ Beech
- 1/4″ or 1/2″ Birch
- 1/4″ or 1/2″ Cherry
- 1/4″ or 1/2″ Maple
- 1/4″ or 1/2″ Oak (Red)
Melamine
- 1/4″ or 1/2″ Almond
- 1/4″ or 1/2″ Black
- 1/4″ or 1/2″ Fog Gray
- 1/4″ or 1/2″ Maple
- 1/4″ or 1/2″ White
Top Edge Types
- Bullnose
- Square
- Square Flush
Top Edge Finishes
- Clear Foil
- PVC Tape
- Wood Tape

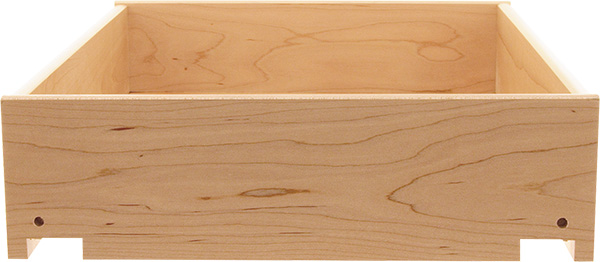

Notch, Drill, & Clip Information
Quick & Easy Drawer Box Installation
Ultimate Cabinets, Inc. can construct drawer boxes that are notched, drilled, and clipped for the installation of undermount drawer slides. We carry adjustable and standard clips from Hettich, Blum, Salice, and Grass. Matching slides are also available (including soft close options).
Features
- Clips Available From: Blum, CMW, Grass, Hettich, & Salice
- Wide Range of Undermount Slides Available
- Concealed Undermount
- Easy Box Installation and Removal
- Increased Drawer Strength and Weight Capacity

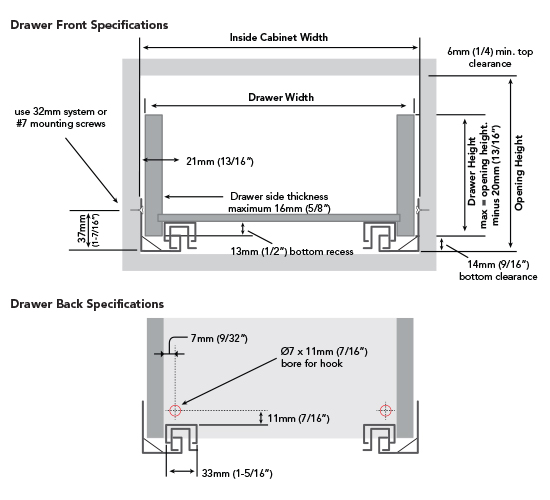

Undermount Drawer Slide Specifications
Outside Drawer Width = Drawer Opening (-) Subtraction Factor
To calculate Outside Drawer Width, first determine Drawer Opening size and Drawer Side Thickness. Use Thickness to look-up Subtraction Factor on chart below. Then simply subtract Subtraction Factor from Drawer Opening size.Side Thickness:
5/8″ (16mm)
19/32″ (15mm)
9/16″ (14mm)
1/2″ (13mm)
15/32″ (12mm)
Subtraction Factor:
3/8″ (10mm)
15/32″ (12mm)
9/16″ (14mm)
5/8″ (16mm)
23/32″ (18mm)
For Example: If you have an 18″ Drawer Opening with a Side Thickness of 5/8″, the Subtraction Factor is 3/8″. So in this case to calculate the outside drawer width the formula is: 18″ – 3/8″ = 17-5/8″.
Ultimate Cabinets, Inc. Tolerances are as follows: Width 1/32″ (+/-), Depth 1/16″ (+/-), and Height 1/16″ (+/-).

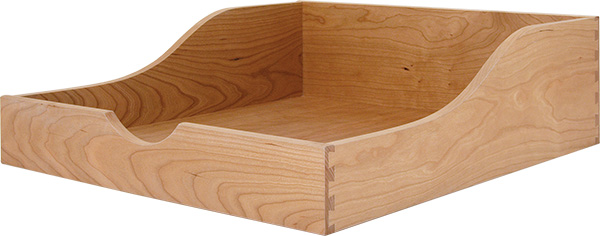

Available Drawer Scoop Options
Convenient & Functional
Most drawer box manufactures only offer 2 different drawer front scoop styles. Ultimate Cabinets, Inc. believes that’s not enough, so we offer 3 different style options for you to choose from. Scoops act as pullouts for drawer boxes which allow for easy access.
Scoops are centered on the front of the drawer box.

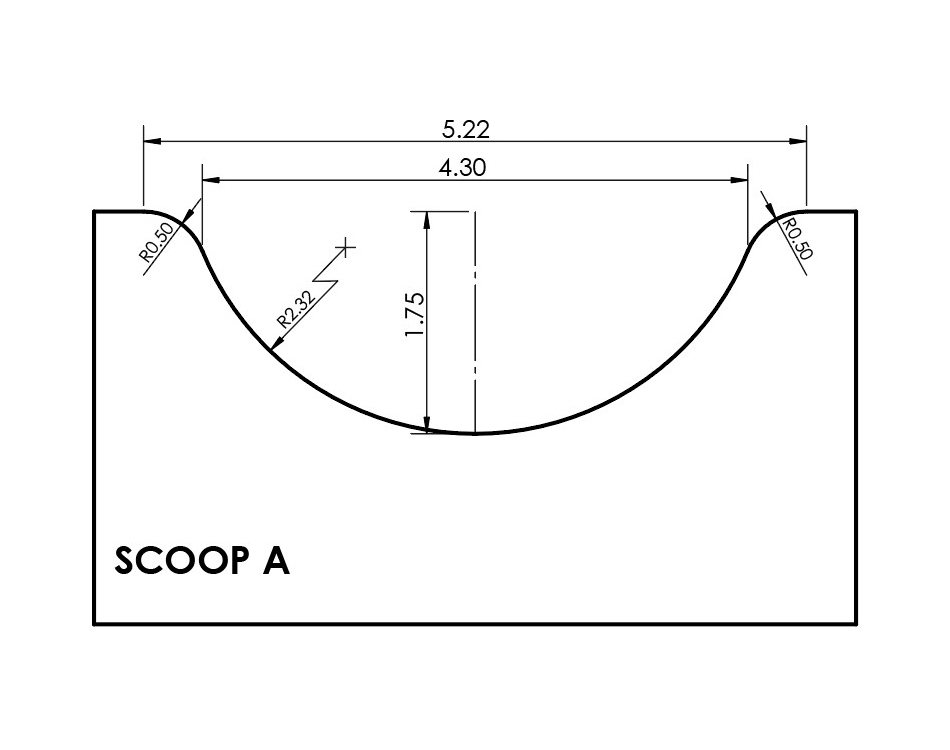

Scoop A
CLOSEST LEGACY MATCH – #5

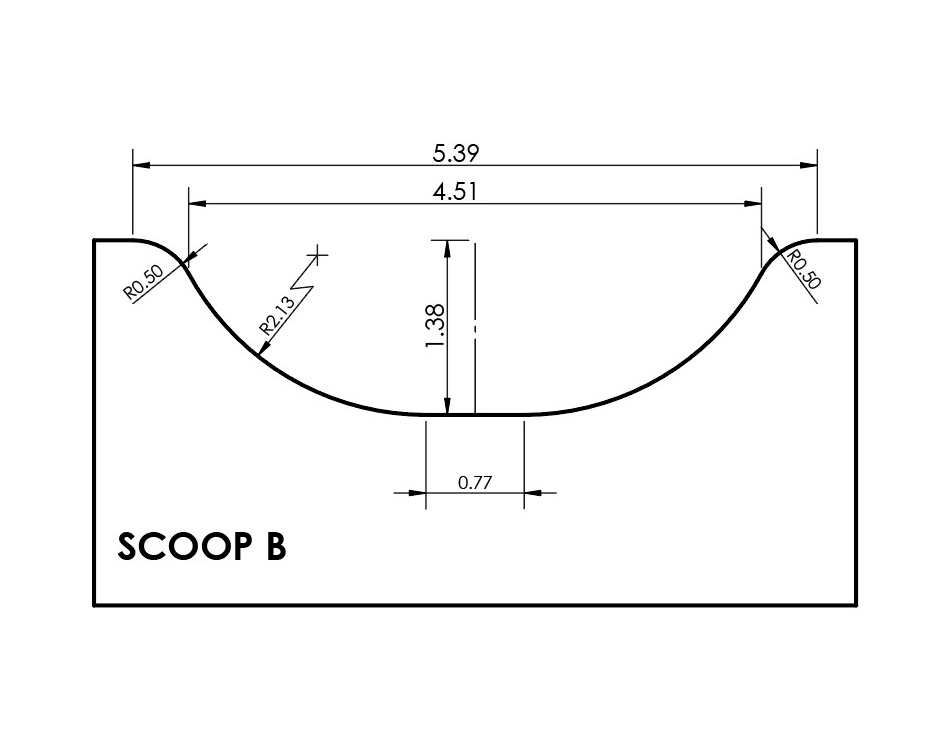

Scoop B
CLOSEST LEGACY MATCH – #6

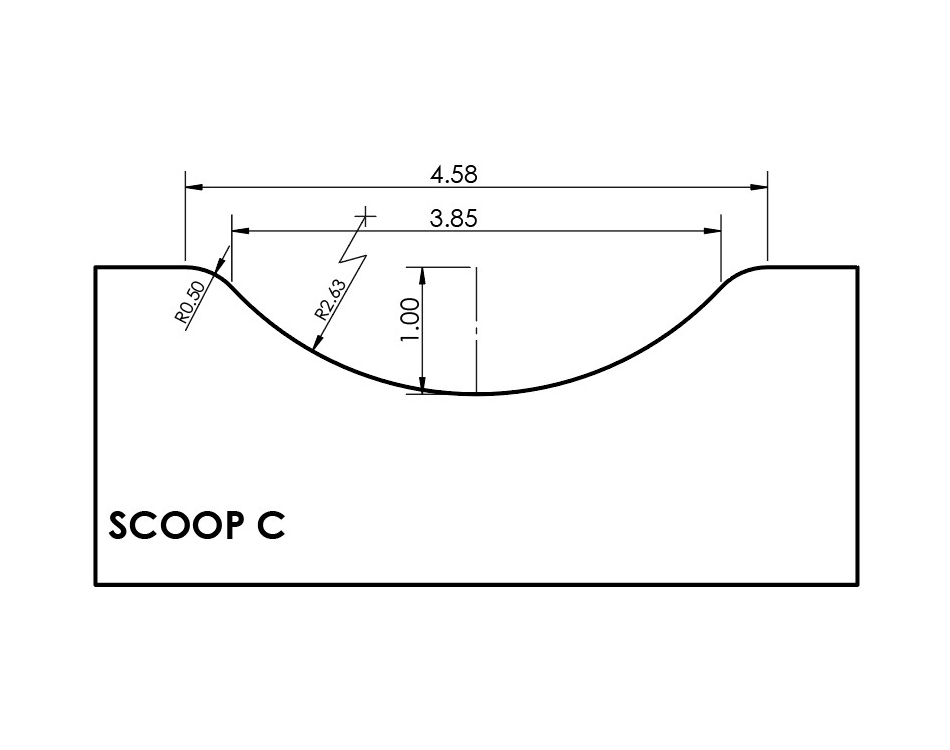

Scoop C
CLOSEST LEGACY MATCH – #3

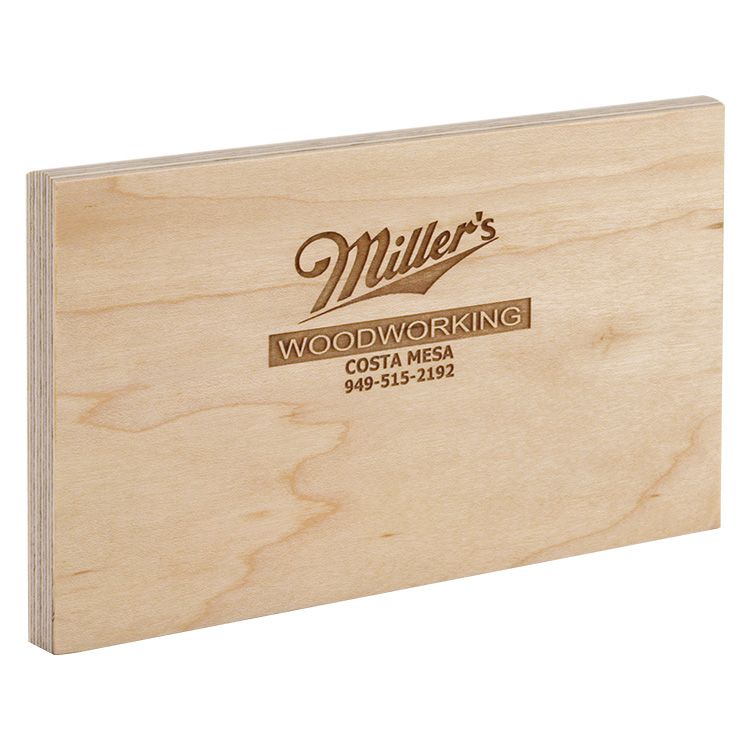

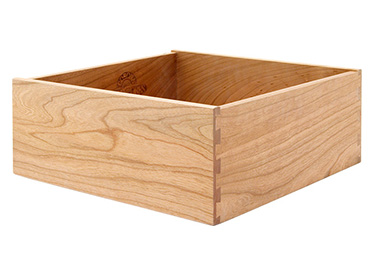

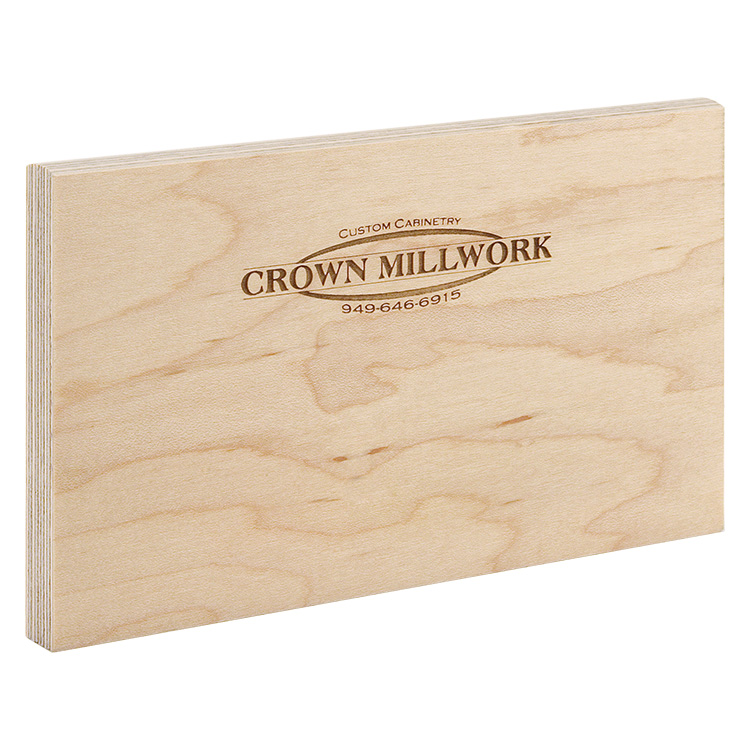

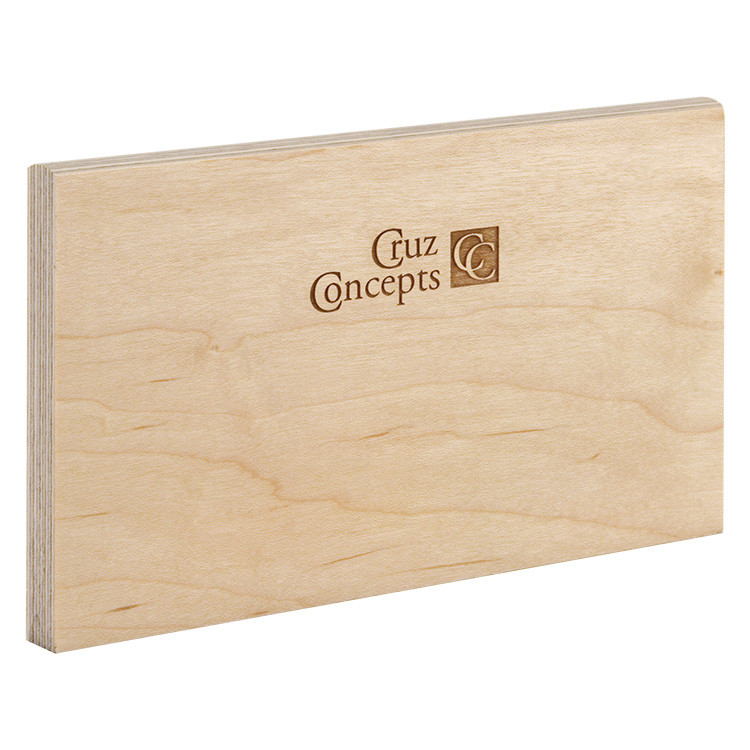

Custom Engraved Laser Logos
Sign Your Work
Give the lasting impression of a completely custom drawer box by leaving a signature of your craftsmanship with your company’s logo. Drawer boxes can be uniquely created with different material options. For the best results Ultimate Cabinets, Inc. recommends laser engraving on alder, cherry, maple, red birch & walnut wood types.
Logo Requirements - For the best results please submit a BLACK & WHITE version of your logo in PDF format to your customer service rep. There is a one-time setup fee per logo used.

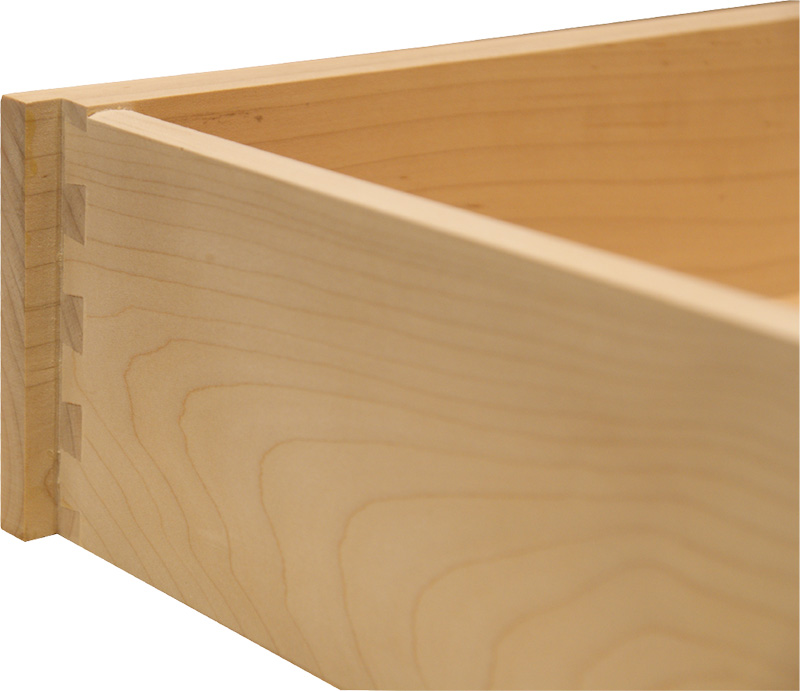

Lipped Drawer Boxes
STYLE #1 – DOVETAIL
Solid Box with Solid Face Lip
3/4″ Thick face board with 3/8″ lip. Add 1/4″ to depth measurement for undermount slides.

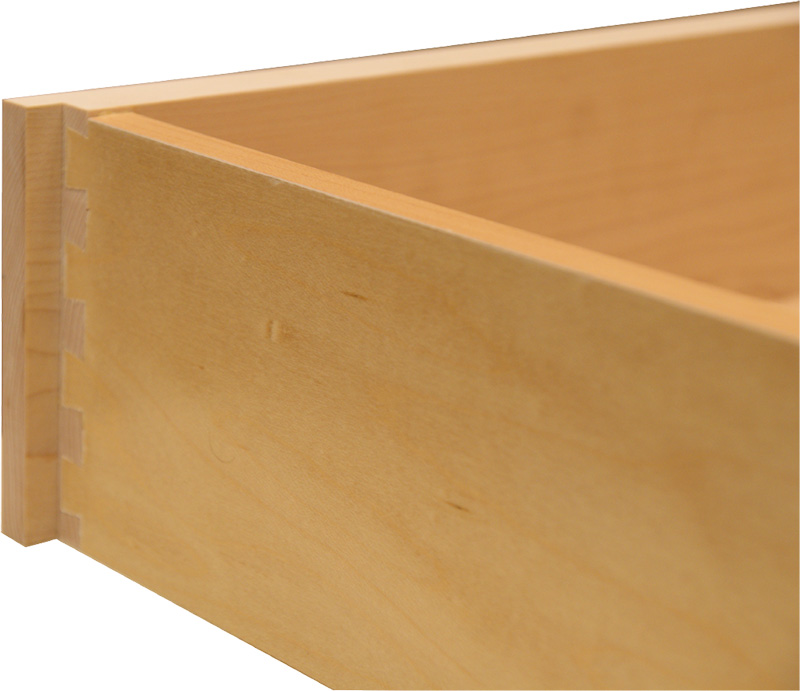

STYLE #2 – DOVETAIL
Plywood Box with Solid Face Lip
3/4″ Thick face board with 3/8″ lip. Add 1/4″ to depth measurement for undermount slides.

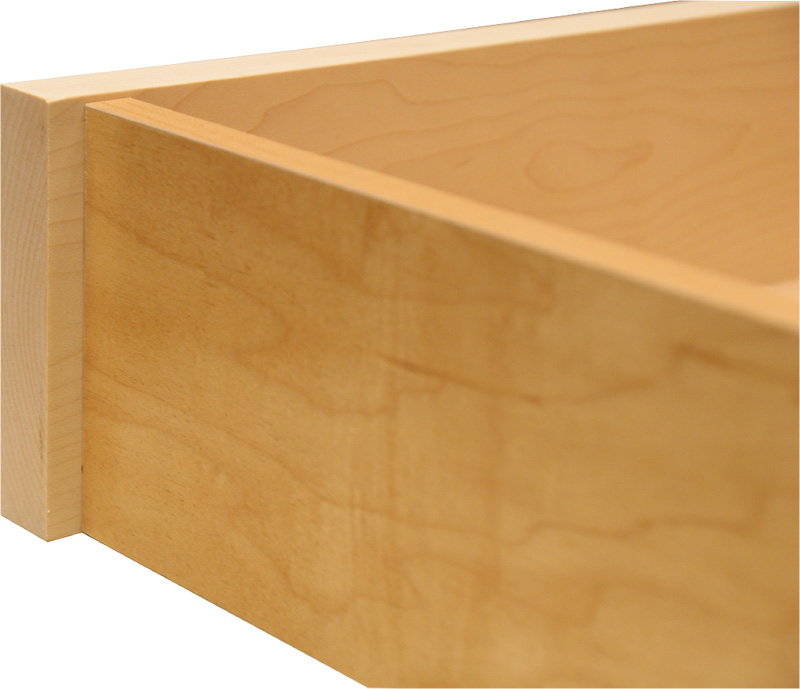

STYLE #3 – DOWELED
Plywood Box with Solid Face Lip
3/4″ Thick face board with 3/8″ lip. Add 1/4″ to depth measurement for undermount slides.

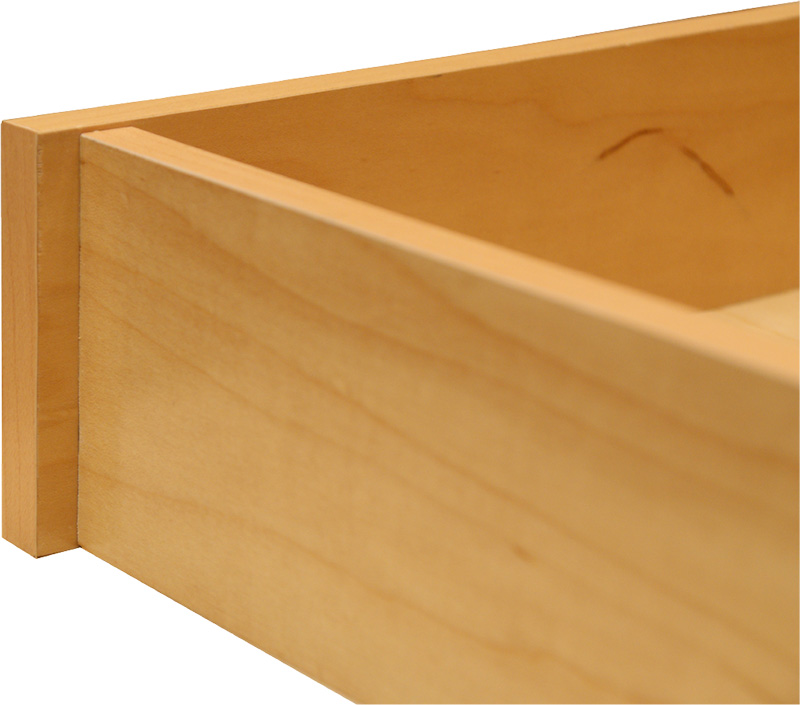

STYLE #4 – DOWELED
Solid Box with Plywood Face Lip
1/2″ Thick face board with 3/8″ lip.
Storage Boxes & Insert Options
Custom Wood Boxes & Inserts
From simple spice and silverware inserts to innovative corner boxes and wine storage options, Ultimate Cabinets, Inc. offers a wide range of drawer box and cabinet inserts to help make the most of your storage space.

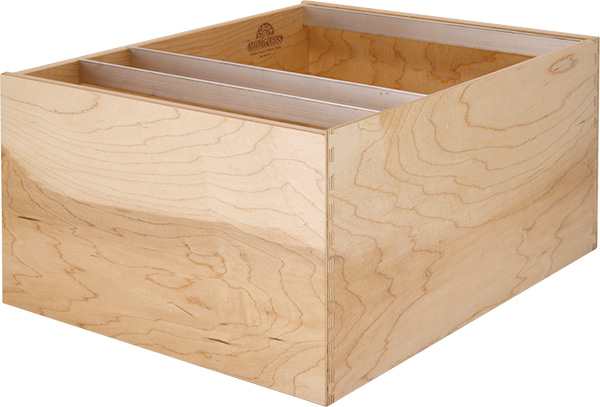

File Organization, Without the File Cabinet
Keep all your paperwork and important files tucked away nice and neat in a Ultimate Cabinets, Inc. file drawer box. Our file boxes are available with file folder rails mounted to hang file folders parallel to the length, or width of the box.
Features
- Available in Dovetail or Doweled Construction
- File Folder Bars Are Optional & Must Be Specified
- Slot For Folder Bars Are 1/8″ Wide and 1″ High
- Both Options Include Letter & Legal File Slots
- File Slots Generally Located 3/8″ from Sides
- Minimum Inside Height: 9-3/8″
- Minimum Inside Width (Letter): 13-1/4″
- Minimum Inside Width (Legal): 16-1/4″
Standard Files
The slots for the file bars are placed on the front & back of the drawer box making them run the depth of the drawer box.
Lateral Files
The slots for the file bars are placed on the sides of the drawer box making them run the width of the drawer box.

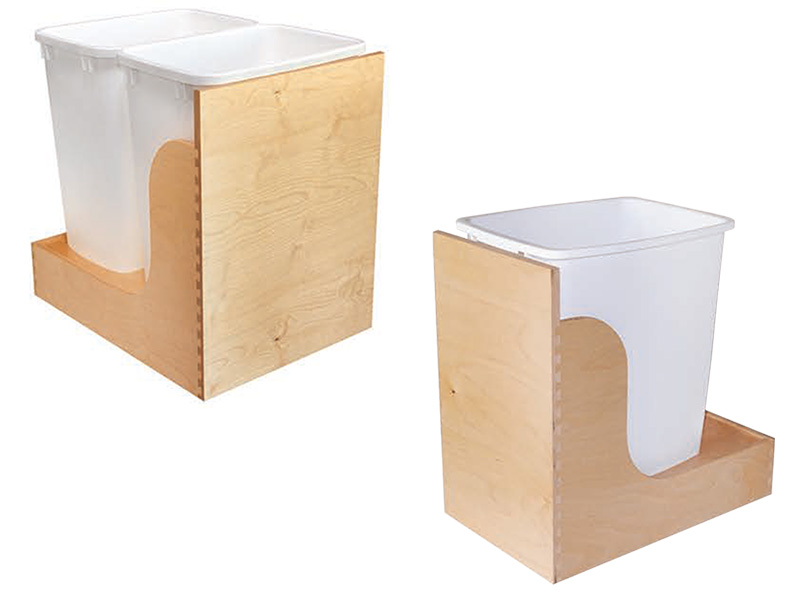

Neat & Discrete Trash Bin Storage
Pull Out Trash Bins from Ultimate Cabinets, Inc. keep garbage out of sight and save floor space. The crafted drawer mounted on the inside of the cabinet allows the trash bins to slide out when the door is opened for easy operation. Multiple trash bins allow for sorting of trash and recyclables.
Features
- Beautiful Dovetail Construction
- Pre-Finished 9 Ply Birch
- Pre-Notched and Drilled
- Easy to Install
- Trash Cans Included
- Includes Blum Soft Close Undermounts and Clips
- Single & Double Bin Styles Available
- Custom Sizes Are Available
- 100lbs Weight Capacity
35 Quart Single Bin (Part# CM3500)
- Standard Depth: 18″
- Standard Height: 17″
- 5/8″ Material Minimum Width: 10-5/8″
- 1/2″ Material Minimum Width: 10-3/8″
70 Quart Double Bin (Part# CM7000)
- Standard Depth: 21″
- Standard Height: 17″
- 5/8″ Material Minimum Width: 14-1/2″
- 1/2″ Material Minimum Width: 14-1/4″

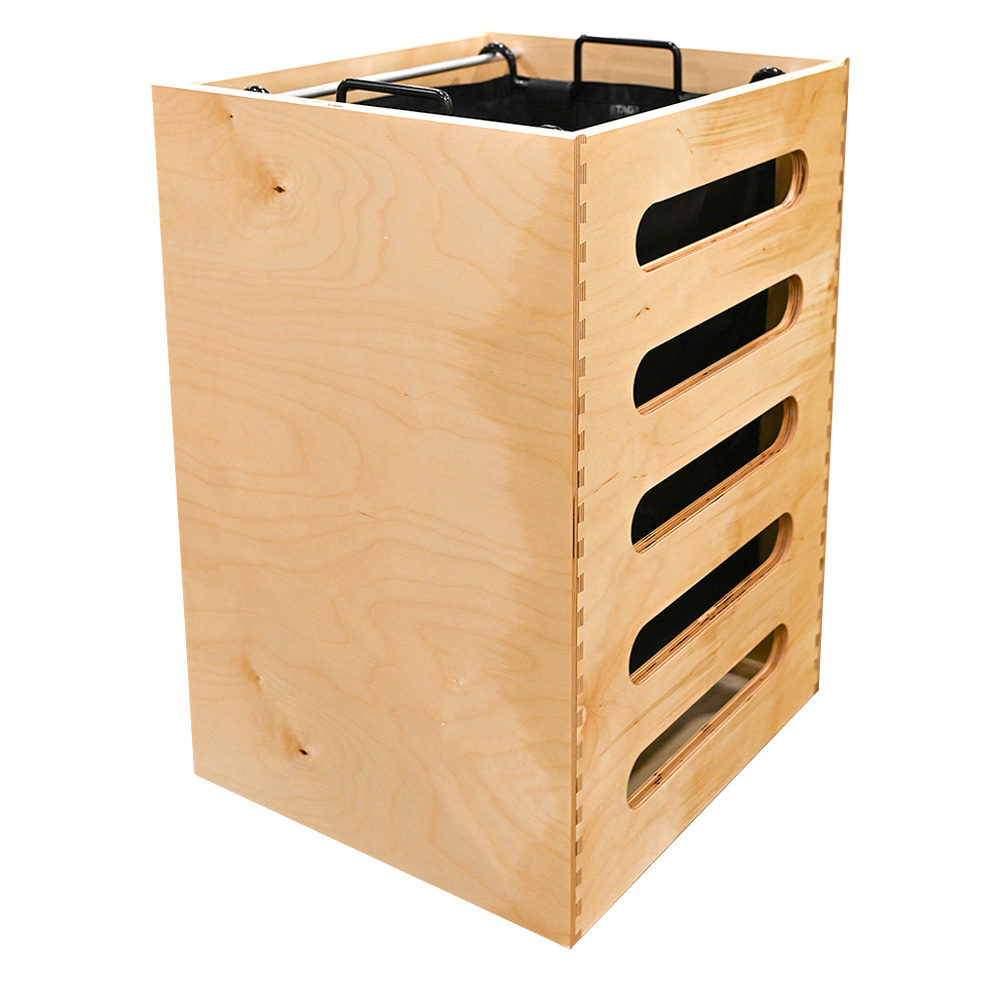

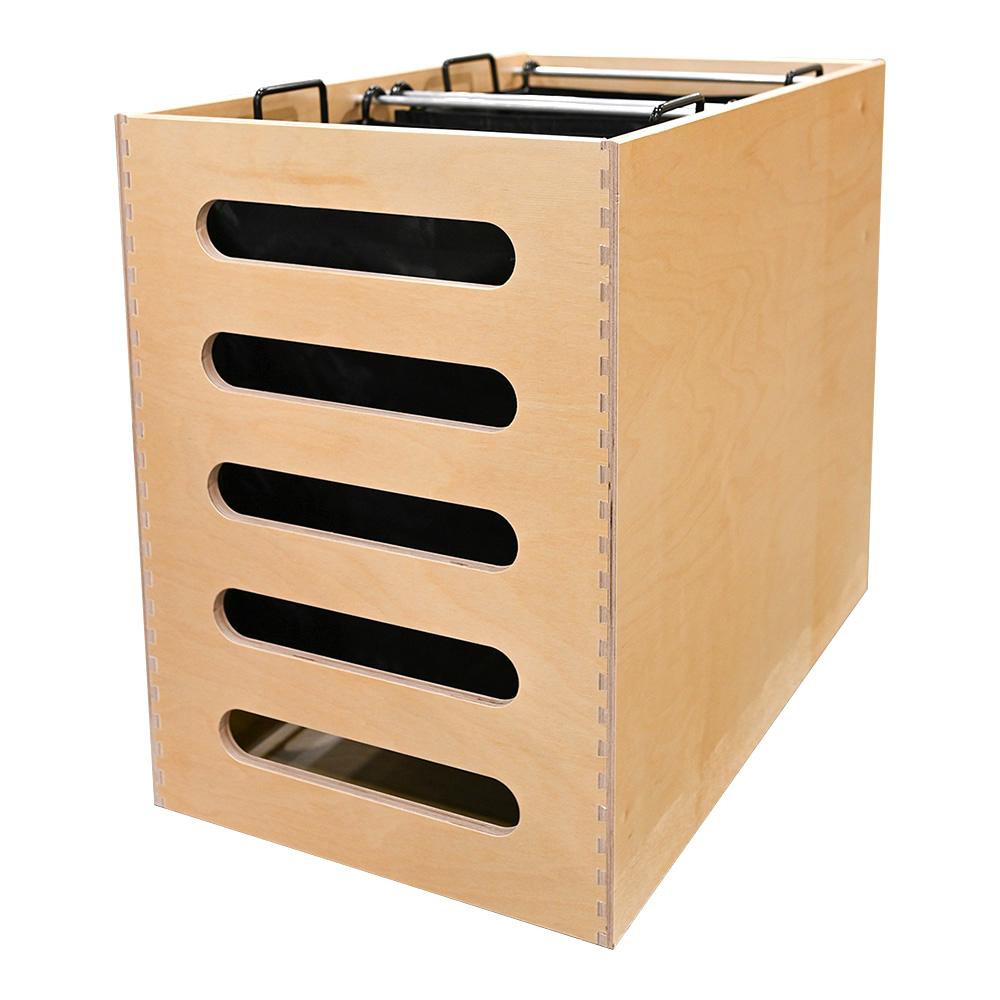

1 & 2-Section Hamper Drawer Box
Our hamper boxes bring added features to enhance your offerings. Whether your customers want to offer laundry sorted by color, family member, or priority, these inserts make it easy to keep things organized and out of sight. Built with our signatureUltimate Cabinets, Inc. quality, each unit features durable construction, smooth glide functionality, and effortless integration into your next project.
Features
- Our Signature Dovetail Construction
- 5/8″ Pre-Finished Baltic Birch Plywood
- Ventilated Sides for Moisture and Odor Control
- Laundry Bags Included
- Easy to Install
1-Section Hamper (Part# DBOX-HAMPER1)
- Minimum Width: 16″
- Standard Depth: 21″
- Height: 25″
2-Section Hamper (Part# DBOX-HAMPER2)
- Minimum Width: 30″
- Standard Depth: 21″
- Height: 25″

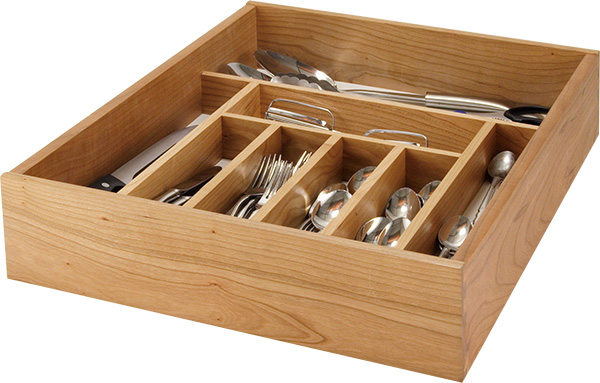

Organize Utensils & Silverware
Keeping your silverware and utensils separated is easy with Ultimate Cabinets, Inc. drawer box inserts. We offer several different pre-configured options, thus allowing you to create the perfect storage space for all your eating utensils.
Features
- Available in Nailed Construction
- 4 Silverware Insert Options
- 3 Utensil Insert Options
- Available as Removable or Fixed
- 1/2″ Thick & 1 1/2″ Tall
- Constructed of Pre-Finished Maple

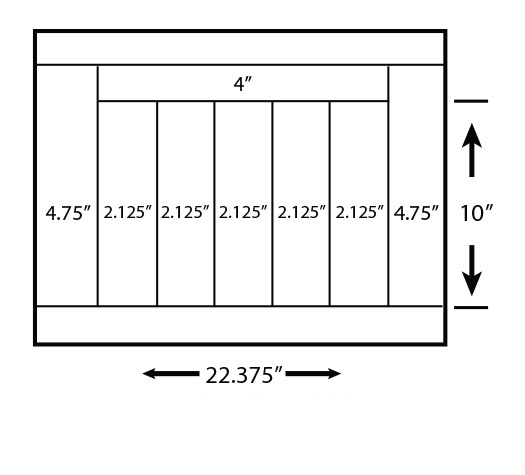

Option A

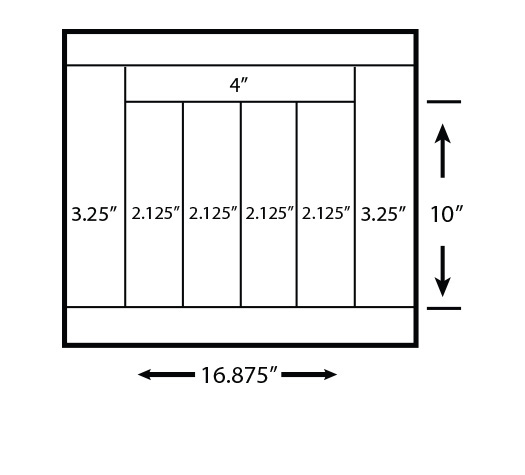

Option B

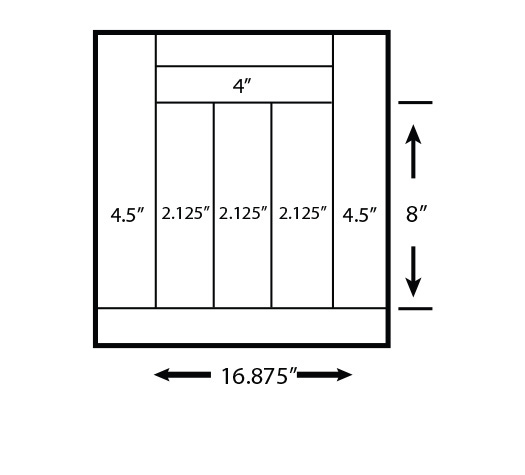

Option C

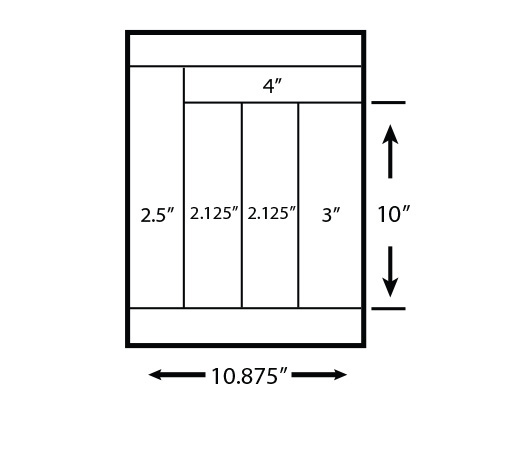

Option D

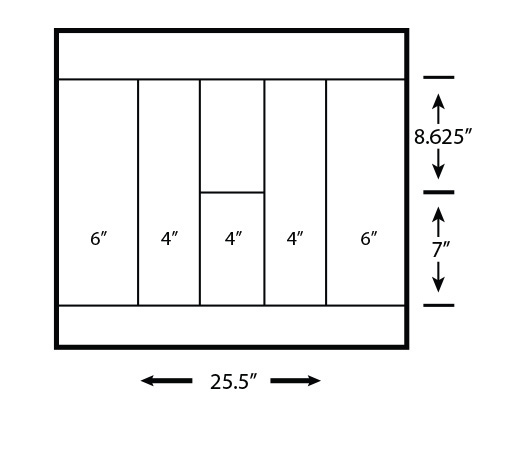

Option E

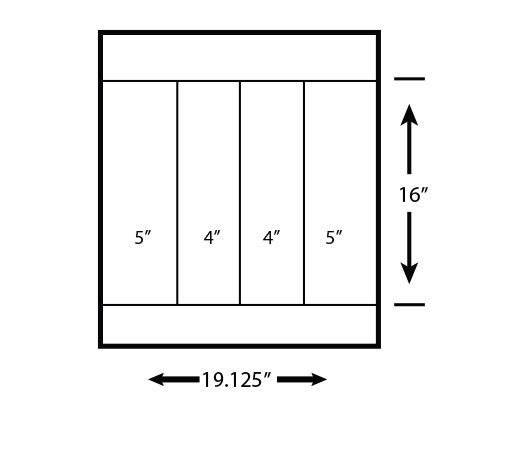

Option F

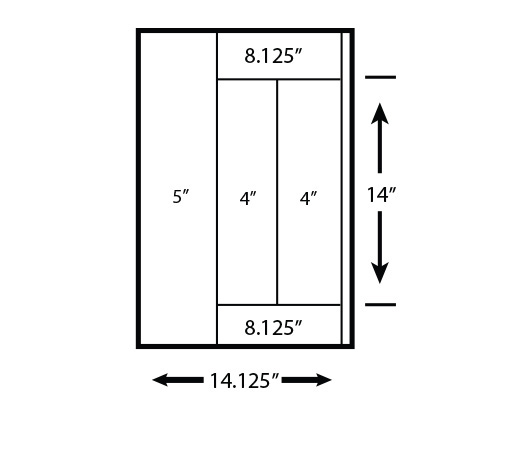

Option G
Spice Storage the Easy Way
Ultimate Cabinets, Inc. spice pull-outs and drawer inserts provide a great way to organize your kitchen or bathroom. In the kitchen the spice pull-out is great for storing canned goods, while the spice insert provides a clutter free way to store your spices. In the bathroom you can store beauty products and personal accessories in a convenient, easy-to-find way.

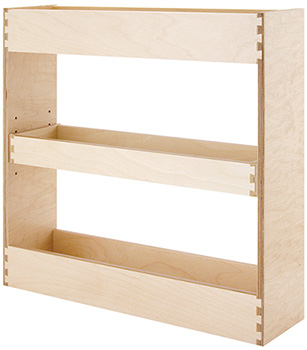

Spice Pull Out Features
- Available in Dovetail Construction
- Can Be Ordered in Any Material
- Available Unfinished or Prefinished
- Maximum Height 21″
- Shelf Bottoms Recessed by 1/2″
- Top/Bottom Shelf Height 3″
- Middle Shelf Height 1 1/2″
- Middle Shelf Adjustable / Removable
- Custom Sizes Available
- Sidemount or Undermount Installation

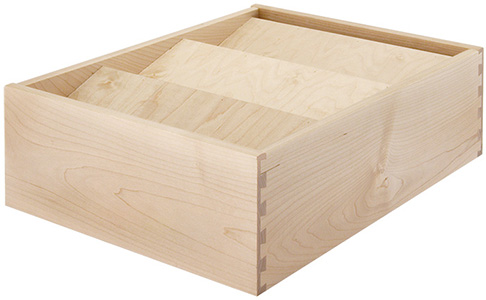

Spice Insert Features
- Available in Nailed Construction
- Can Be Ordered in Any Material
- 1/2″ Fronts with 1/4″ Bottoms
- Can Be Purchased Pre-Installed
- Available Up To 48″
- Quantity of Inserts Depends on Drawer Depth
- Suggested Height is 3 1/2″
- Custom Sizes Available

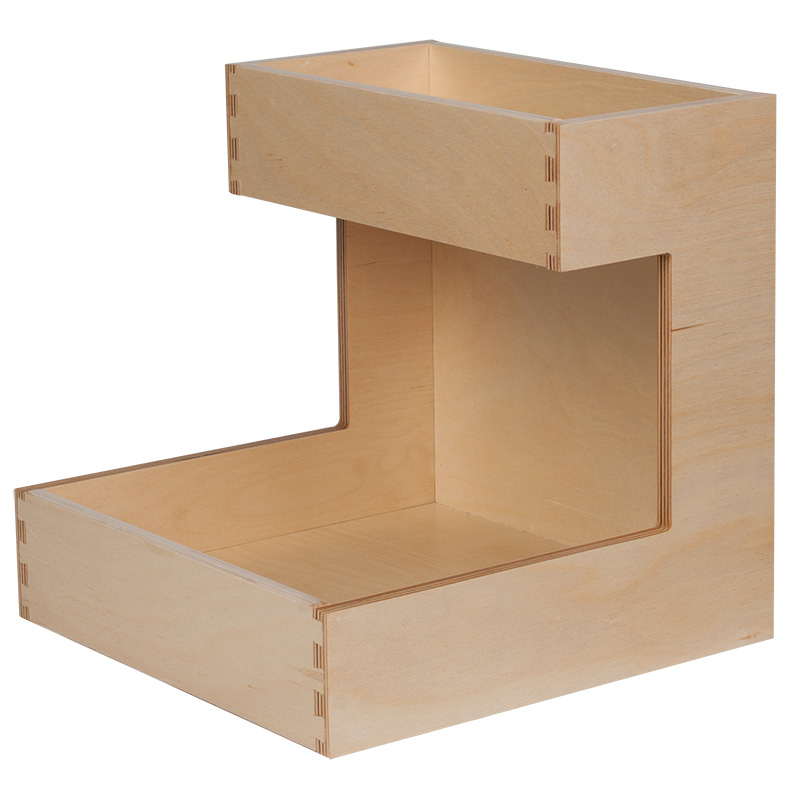

Perfect for Kitchens & Baths
Most of us store our cleaning supplies under our sinks, but we often don’t have a good way to organize them. To help you win the war on clutter, Ultimate Cabinets, Inc. offers under sink storage boxes.
Features
- Available in Dovetail Construction
- Available in 9-Ply Birch or Maple Wood
- Top & Bottom Shelves Have 3″ Height
- Standard Height is 12″
- Shelf Bottoms Recessed by 1/2″
- Custom Sizes Available
- Sidemount or Undermount Installation
- Great For Kitchens & Baths
