Face Frame Cabinets
These cabinets incorporate a solid wood frame that is attached to the front edges of the cabinet cases. Hinges mount to this face frame and there is usually a wide gap between cabinet doors and drawer fronts which makes the face frame a visible part of the cabinet bank. The amount of overlay will vary depending on hinge & plate pairing used.
Face Frame Full Overlay Hinge & Plate Pairings

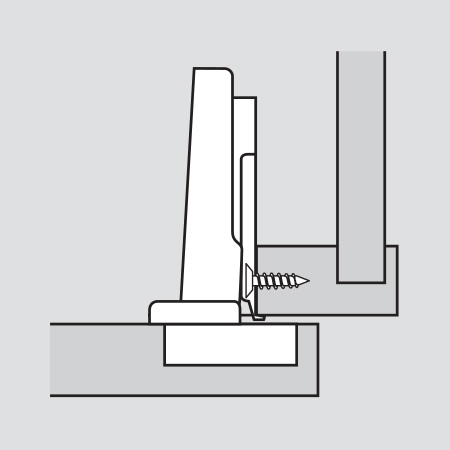

Full Overlay Information
Using a full overlay hinge and plate pairing on a face frame cabinet will cover up to 3/4″ of the face frame, and give the cabinets a more streamlined “Euro” box look. Using full overlay hinges on a face frame cabinet will typically yield a 1/4″ ~ 3/8″ gap between cabinet doors.

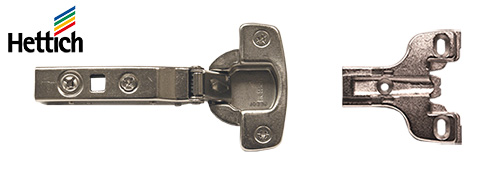

Hettich Pairings
Soft Close Pairing
HINGE: 110 Degree, Soft Close (HE-110FSC)
PLATE: 0mm Face Frame (HE-0MMFFSC)

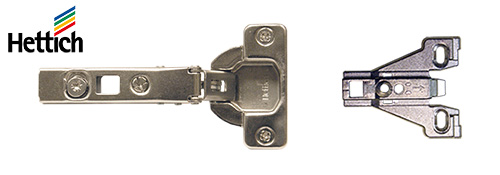

Regular Close Pairing
HINGE: 125 Degree (HE-125F)
PLATE: 0mm Face Frame (HE-0MMFF)
Blum Pairings

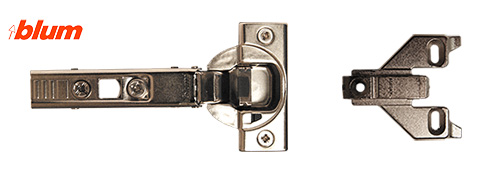

Soft Close Pairing
HINGE: 110 Degree, Soft Close (HIN-BL110SC)
PLATE: 0mm Face Frame (PLA-BL0FF34)

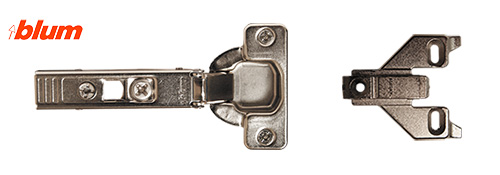

Regular Close Pairing
HINGE: 120 Degree (HIN-BL120F)
PLATE: 0mm Face Frame (PLA-BL0FF34)
CMW Pairings
Soft Close Pairing
NOT
AVAILABLE
Regular Close Pairing
HINGE: 120 Degree (H-120)
PLATE: 0mm Face Frame (FFP0)
Face Frame Half Overlay Hinge & Plate Pairings

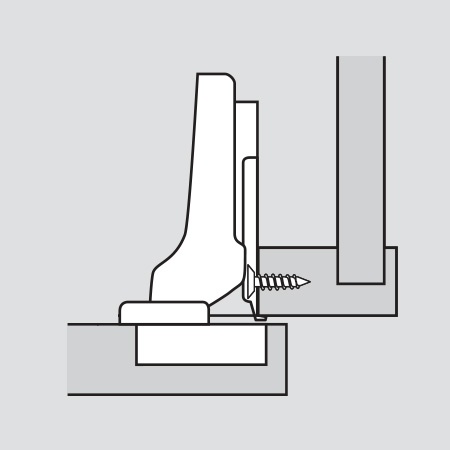

Half Overlay Information
Using a half overlay hinge and plate pairing on a face frame cabinet will cover up to 1/4″ of the face frame. This is a more traditional setup and will typically yield a 1-3/4″ ~ 2″ gap between cabinet doors depending on the face frame stile width used.
Hettich Pairings

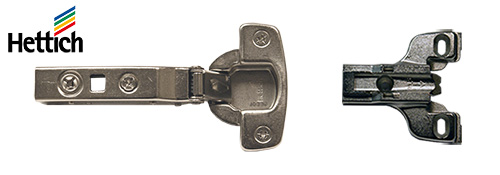

Soft Close Pairing
HINGE: 110 Degree, Soft Close (HE-110FSC)
PLATE: 4.5mm Face Frame (HE-4.5MMFFSC)

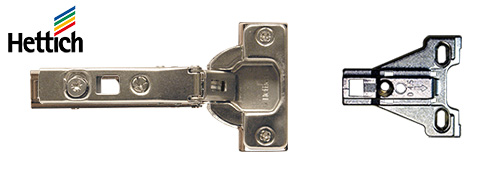

Regular Close Pairing
HINGE: 125 Degree, Soft Close (HE-125F)
PLATE: 4.5mm Face Frame (HE-4.5MMFF)
Blum Pairings

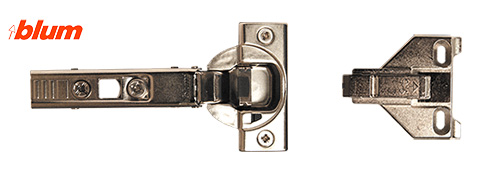

Soft Close Pairing
HINGE: 110 Degree, Soft Close (HIN-BL110SC)
PLATE: 3mm Face Frame (PLA-BLFF12)

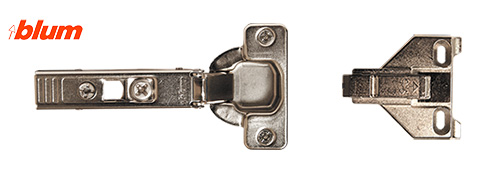

Regular Close Pairing
HINGE: 120 Degree (HIN-BL120F)
PLATE: 3mm Face Frame (PLA-BL0FF12)
CMW Pairings

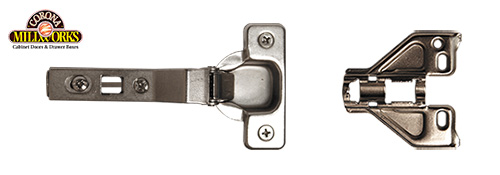

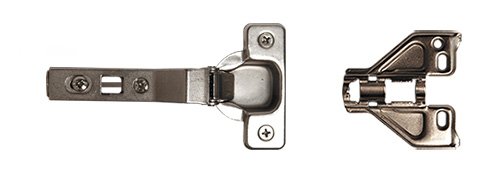

Soft Close Pairing
HINGE: 110 Degree, Soft Close (SCH-110F)
PLATE: 3mm Face Frame (FFP3-S)

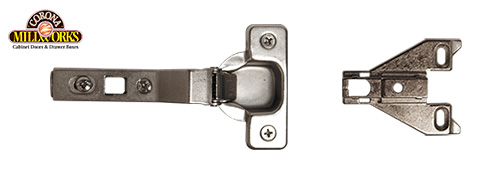

Regular Close Pairing
HINGE: 120 Degree (H-120)
PLATE: 3mm Face Frame (FFP3)
Custom Overlay Options
In addition to stocked hinges and plates, Ultimate Cabinets, Inc. can special order hardware from Hettich and Blum to accommodate most overlay configurations. Your account manager or customer service representative can assist with questions you may have regarding non-stocked options.
